Redefining Drone Inspection Cameras

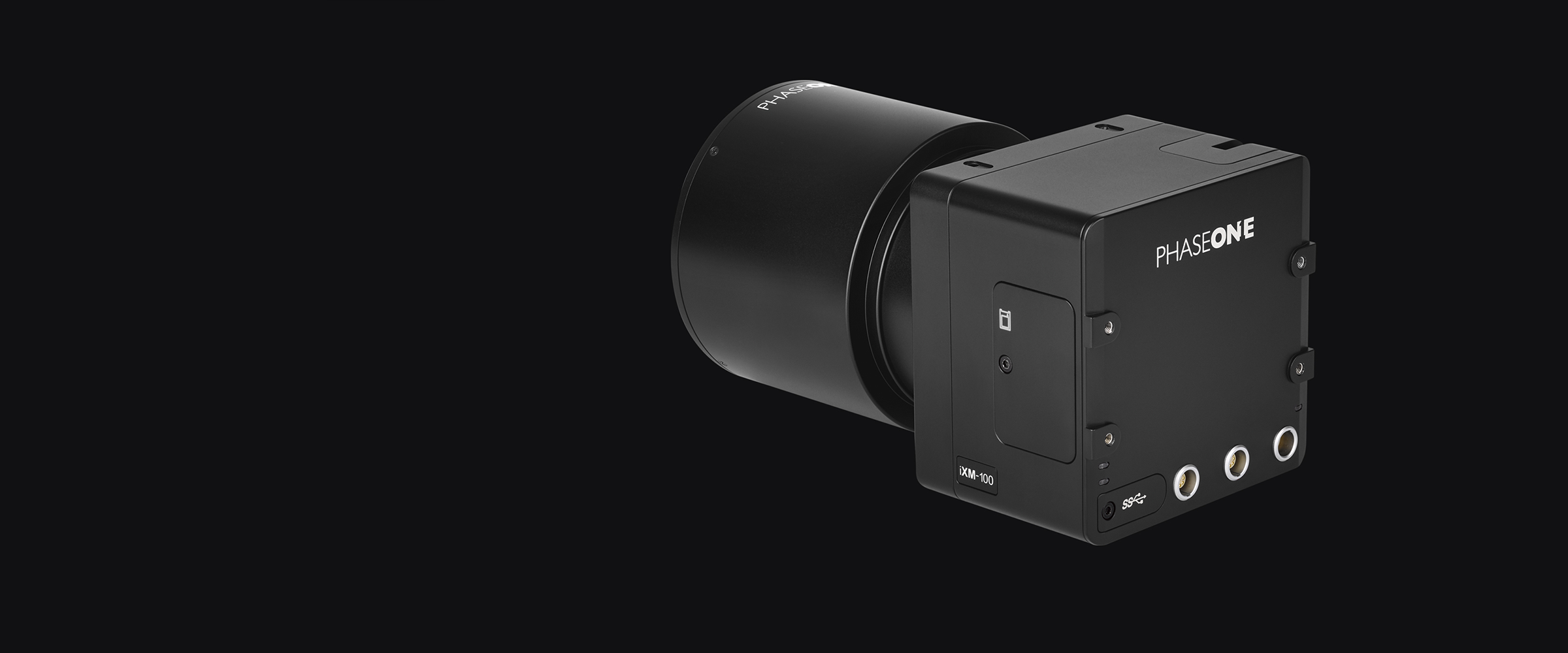

A breakthrough medium-format camera driven by the world’s fastest imaging sensor. Engineered for UAV-based imaging missions, the iXM 100MP is a high-productivity metric aerial camera with a range of high-resolution lenses.
The camera incorporates the first medium-format sensor with backside-illumination technology, which enables high light sensitivity and extension of its dynamic range.
Fast, highly responsive, robust, and easily integrated with UAVs, the iXM 100MP sensor delivers superior quality aerial imaging and flexible operation to satisfy diverse mapping, surveying, and inspection applications.
Five Phase One RSM lenses, with focal lengths ranging from 35mm to 300mm, seamlessly fit the new sensor, ensuring exceptional sharpness across the image.
With no external moving parts, the lenses enable a number of new uses for inspection applications, where the focusing distance can be predefined based on flight planning or using wireless remote control.
– Fixed Focus – 35mm & 80mm
– Motorized Focus – 80mm – 300mm
New Leaf Shutter Technology
The lenses’ integrated leaf shutter offers a high capture speed for an array of flight conditions.
– 3fps Capture Rate
– 1/2500sec. Exposure Time
– 500K Actuations Guaranteed
The iXM is equipped with the first medium-format sensor to implement backside-illumination technology for enhanced light sensitivity and extended dynamic range.
– 3.76µm Pixel Size
– 33 x 44mm Frame Size
– 83dB Dynamic Range
The iXM’s large-area sensor delivers a close-and-detailed look at all an object’s parts. This enables predictive maintenance for inspection missions of power lines, wind turbines, roads, bridges, and pipelines as well as forestry and agriculture. It not only reduces the costs and the risky operations of ground teams, but also increases the speed and precision of collecting data.
With the motorized-lens functionality, the camera captures sharp and highly detailed images of multi-distance or 3D objects. The 80 mm and 300 mm lenses are ideal for a wide range of inspection applications.
Phase One offers a precision-driven solution that simplifies surveying and mapping processes. It provides professionals with unlimited aerial data, while saving time, money, and human resources.
Our metric cameras, with a selection of 35mm and 80mm RSM lenses, enable the user to effortlessly execute photogrammetry and mapping missions, capture high-resolution images, and create 2D and 3D maps. The iXM camera is a superior geosystem compared to other systems available on the market today.
Contact a Phase One Expert
If you would like to learn more about the iXM-100 and iXM-50, our experts are eager to help! Contact Us.
