P3 Payload
Unmatched inspection productivity
P3 UAV Payload delivering the finest details from the furthest distance
Designed to maximize the productivity of any inspection project where time, safety, and image details are paramount for success, P3 Payload provides you with the right tools to achieve unmatched performance.
Featuring a medium format sensor 1.7 times larger than other cameras, Phase One iXM captures more details in each frame saving you tremendous mission time.
Our iXM cameras are uniquely designed for UAVs and are fast, highly responsive, robust, and easily integrate with your aerial photography drone for diverse inspection and mapping missions. iXM cameras are available with a range of RSM lenses to ensure that your Phase One P3 Payload gives you the best image quality and performance.
Best-in-class sensor performance
Make the most of every flight by capturing more in every shot with the largest image sensor.
Flexible configuration for every need
Get more value out of your inspection by switching between vertical and horizontal configurations to collect data faster and reduce background noise.
More details from a distance
Get detailed data from the safest distance while covering a large area choosing from a variety of our lenses.
Smart capture for robust results
Make every shot count. Capture easily complex assets and moving objects with smart focusing and triggering.
Productivity Drivers
Longest focal length 150mm lens
Longer distance – more details – increased safety
- The lens offering increases productivity and ensures safe operation, without compromising on image quality
- All Phase One lenses are factory-calibrated to the highest quality standards
- Best coverage to GSD ratio
Largest image sensor
More coverage – fewer images – faster missions
The iXM medium format sensor has been the benchmark for many years for high-resolution aerial photography. This medium format sensor is 1.7 times larger than a standard 35mm full-frame sensor, which translates directly into inspection productivity.
Highest dynamic range
Extended operations – higher availability
The iXM reaches superior performance in low light & high contrast situations, thanks to its dynamic range of 83dB, low noise, and optimized pixel size.
Smart focus
Smart focus – sharper images – no repetition
Onsite inspection productivity depends on the ability to capture the correct data. End-to-end productivity means that the data has to constantly be of high quality. Phase One P3 Payload uses a smart focus system to ensure sharpness and consistent image quality.

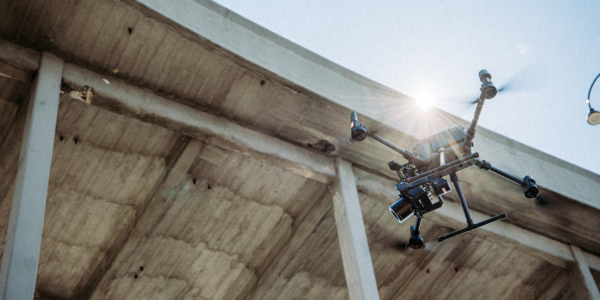

Success stories from our customers

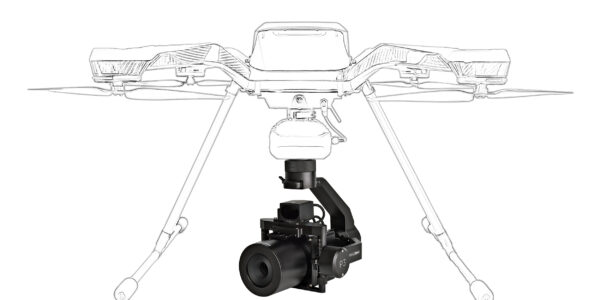

Discover the success stories of our customers who have harnessed the power of the Phase One P3 Payload, a customizable drone imaging solution for all your inspection needs. Choose your drone, your camera, and your lens, to capture the smallest details of the largest areas from the furthest distance.
Technical specifications
RSM Lenses – Technical specifications
RSM 35mm f/5.6 Lens
Lens composition
12 elements in 8 groups
Minimum focusing range
infinity
Shutter speed max (sec)
1/2500
Exposure control
1/3 f - stop increments
Aperture range
f/5.6 - f/22
Filter diameter (mm)
58
Angle of view - Long side (°) 120 MP sensor
64.4
Angle of view - Long side (°) 100 MP sensor
64.1
Angle of view - Short side - (°) 120 MP sensor
50.2
Angle of view - Short side - (°) 100 MP sensor
50.3
Entrance pupil to image plane (mm)
72
RSM 80mm f/5.6 Lens
Lens composition
8 elements in 5 groups
Minimum focusing range
infinity
Shutter speed max (sec)
1/2500
Exposure control
1/3 f - stop increments
Aperture range
f/5.6 - f/22
Filter diameter (mm)
58
Angle of view - Long side (°) 120 MP sensor
30.8
Angle of view - Long side (°) 100 MP sensor
30.7
Angle of view - Short side - (°) 120 MP sensor
23.3
Angle of view - Short side - (°) 100 MP sensor
23.2
Entrance pupil to image plane (mm)
85
RSM 80mm AF f/5.6 Lens
Lens composition
8 elements in 5 groups
Minimum focusing range
3m to infinity
Shutter speed max (sec)
1/2500
Exposure control
1/3 f - stop increments
Aperture range
f/5.6 - f/22
Filter diameter (mm)
58
Angle of view - Long side (°) 120 MP sensor
30.8
Angle of view - Long side (°) 100 MP sensor
30.7
Angle of view - Short side - (°) 120 MP sensor
23.3
Angle of view - Short side - (°) 100 MP sensor
23.2
Entrance pupil to image plane (mm)
85
RSM 150mm AF f/5.6 Lens
Lens composition
8 elements in 7 groups
Minimum focusing range
10m to infinity
Shutter speed max (sec)
1/2500
Exposure control
1/3 f - stop increments
Aperture range
f/5.6 - f/22
Filter diameter (mm)
58
Angle of view - Long side (°) 120 MP sensor
16.7
Angle of view - Long side (°) 100 MP sensor
16.6
Angle of view - Short side - (°) 120 MP sensor
12,6
Angle of view - Short side - (°) 100 MP sensor
12.5
Entrance pupil to image plane (mm)
107
Contact a Phase One Expert

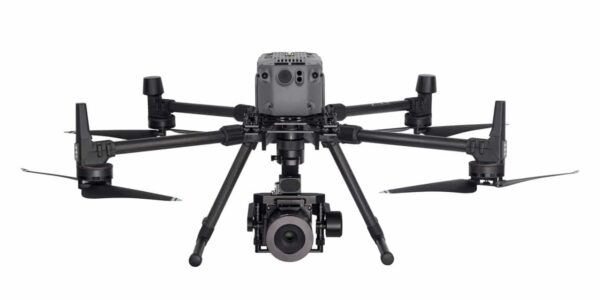

If you would like to learn more about our P3 Payload for DJI M300/M350, our experts are eager to help! Contact Us.
