iXM-SP150 Space Imaging
Phase One Space Hardened Camera
iXM-SP150: Space Camera

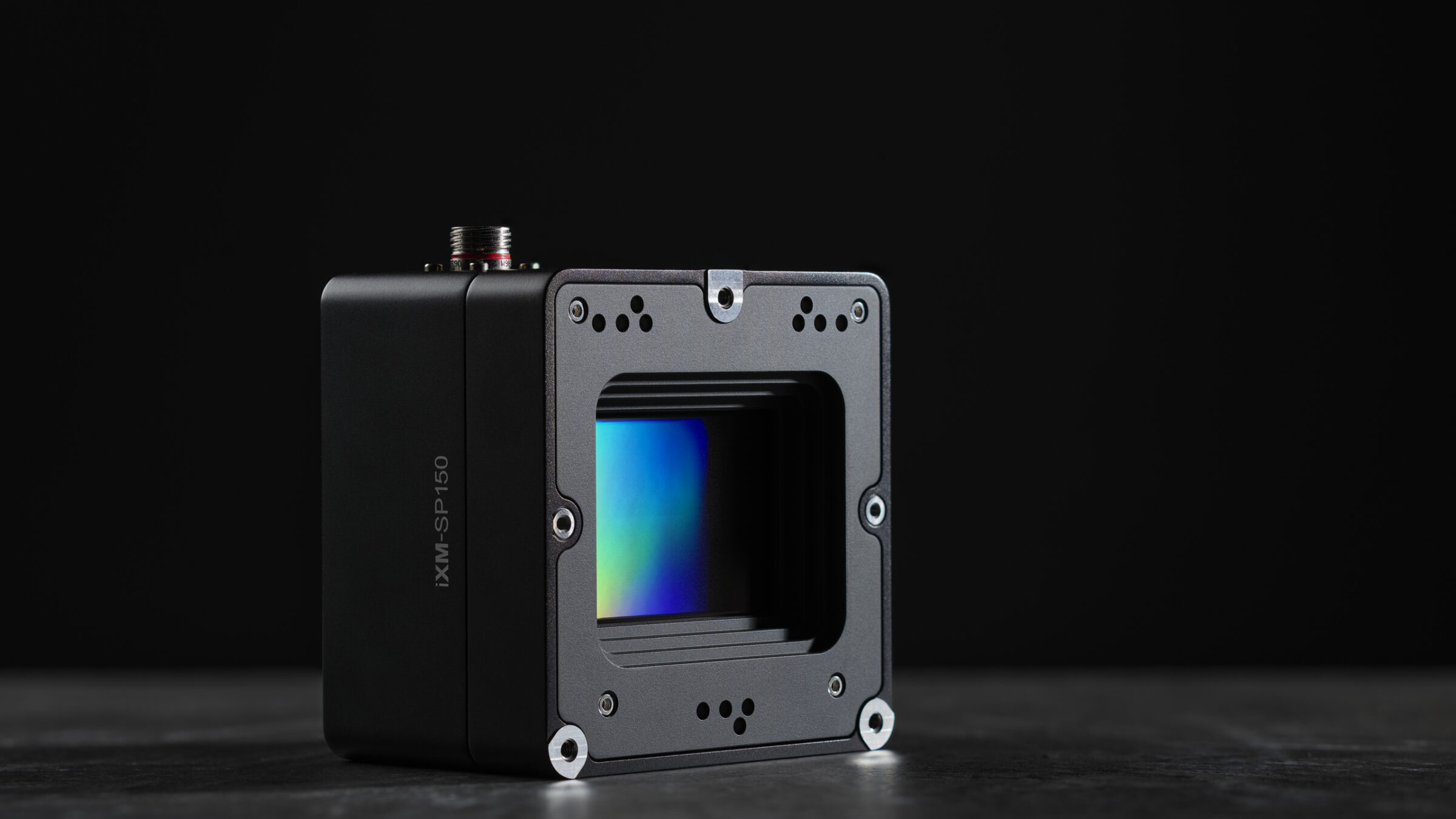

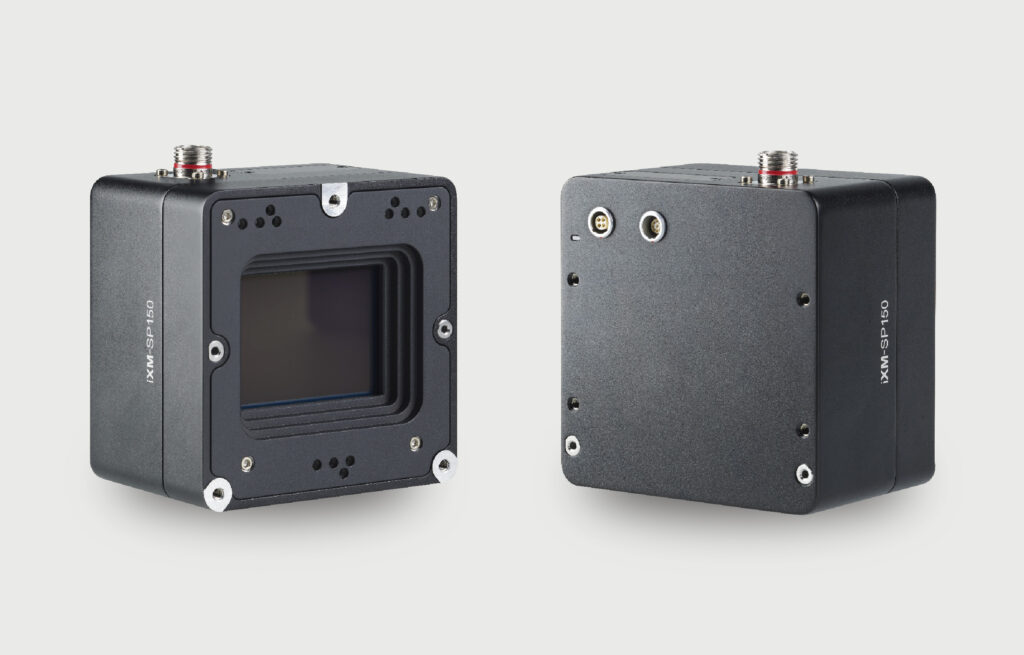

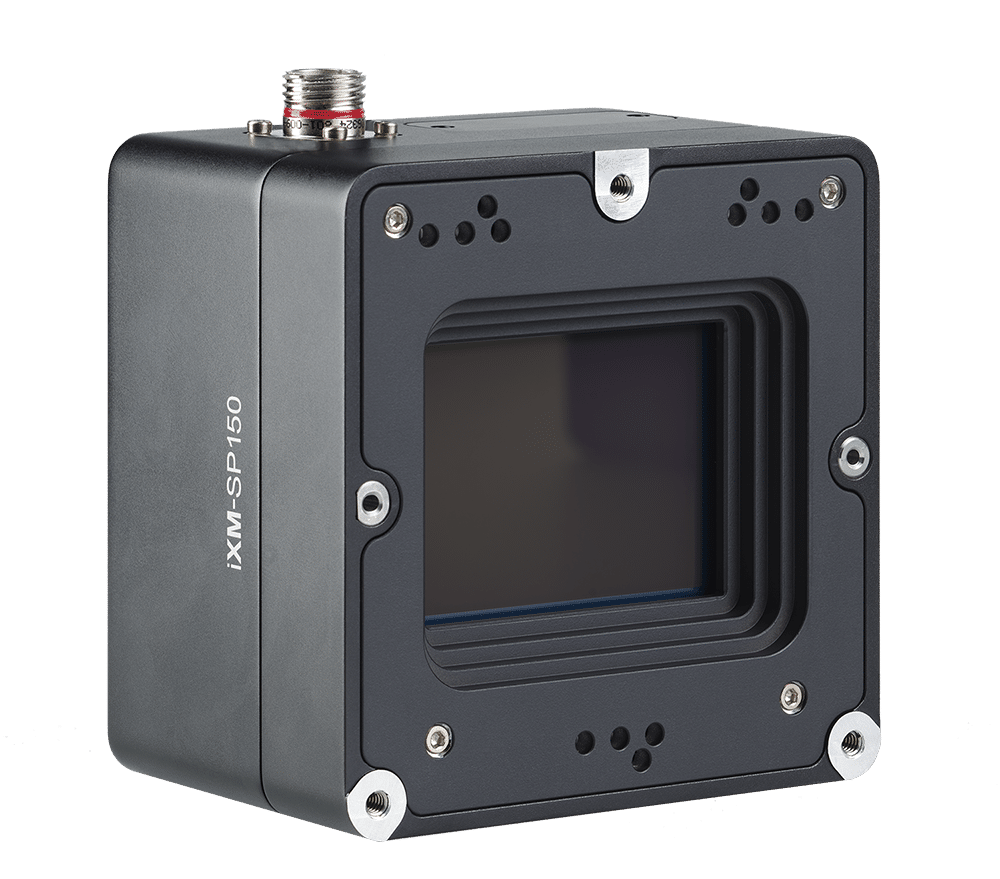

The Phase One Space Hardened Camera. Designed and built to operate in Low Earth Orbit in Space, iXM-SP150 is a snapshot matrix camera, ready for integration with Space telescopes and satellite hardware.
iXM- SP150 Space Camera offers unmatching wide area, high resolution, high sensitivity, low noise imaging capabilities, and is qualified for Earth Observation and Space Domain Awareness applications, with Achromatic and color variants.
Space Camera Key Benefits
Collect more data in every frame with our 150MP, snapshot matrix camera
Unlock the power of seamless image capture with our technology, allowing you to effortlessly capture large area images with pixel-perfect precision. Thanks to the small pixel size of our sensors our design allows for the use of smaller and more cost-effective components, such as compact telescopic lenses, to achieve the same high-quality imaging results. By eliminating precision errors associated with line TDI scanners, you can ensure maximum accuracy and efficiency in your data collection.
With the ability to capture multiple images of the same large area and achieve full motion video at a 4 fps capture rate, our technology significantly increases the signal-to-noise ratio and overall image quality for a truly immersive imaging experience.
High resolution, 150MP Snapshot matrix camera
iXM-SP150 was originally designed for space, incorporating system redundancy and containing radiation hardened electronic components. An early unity has been operating in space since mid-2022, proving its high quality Earth observation imaging capabilities, reliability and durability in Low Earth Orbit.
Straight forward integration with satellite hardware

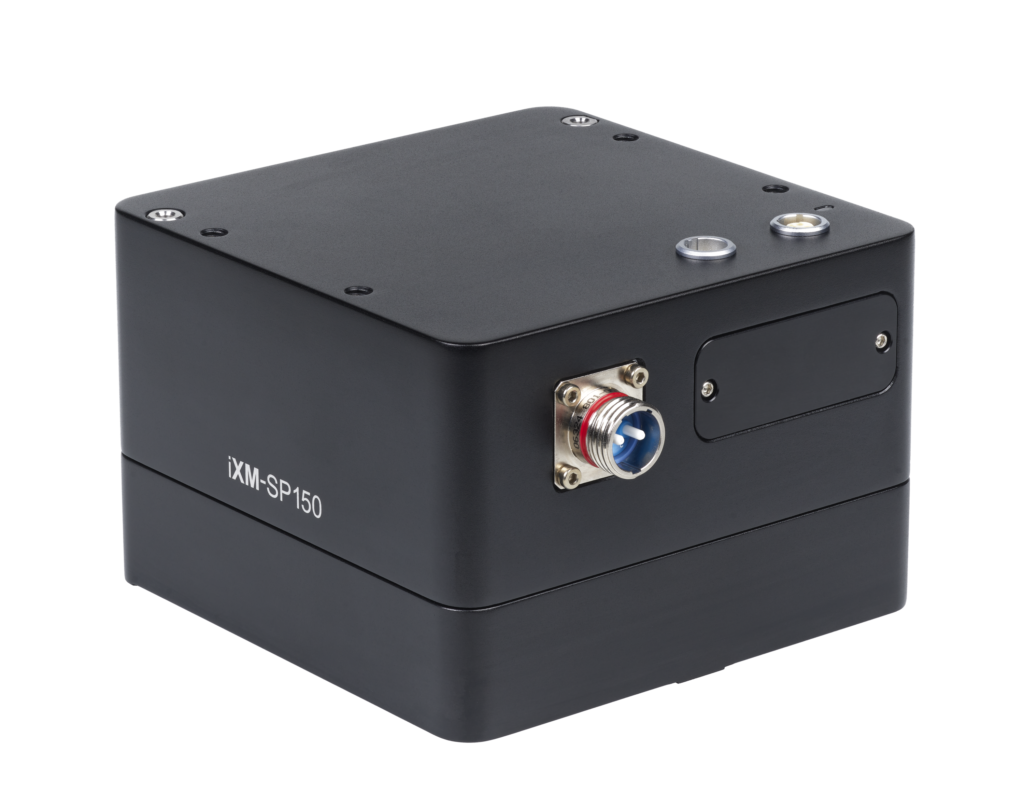

Phase One’s space-hardened enclosure combines a sensor and imaging engine, optional sensor alignment with space telescopes. With an fiber optic 10G Ethernet data interface, you can ensure high speed and reliable data transfer for your space applications.
-
Collect more data in every frame with our 150MP, snapshot matrix camera
Collect more data in every frame with our 150MP, snapshot matrix camera
Unlock the power of seamless image capture with our technology, allowing you to effortlessly capture large area images with pixel-perfect precision. Thanks to the small pixel size of our sensors our design allows for the use of smaller and more cost-effective components, such as compact telescopic lenses, to achieve the same high-quality imaging results. By eliminating precision errors associated with line TDI scanners, you can ensure maximum accuracy and efficiency in your data collection.
With the ability to capture multiple images of the same large area and achieve full motion video at a 4 fps capture rate, our technology significantly increases the signal-to-noise ratio and overall image quality for a truly immersive imaging experience.
-
Proven for use in Low Earth Orbit
High resolution, 150MP Snapshot matrix camera
iXM-SP150 was originally designed for space, incorporating system redundancy and containing radiation hardened electronic components. An early unity has been operating in space since mid-2022, proving its high quality Earth observation imaging capabilities, reliability and durability in Low Earth Orbit.
-
Straight forward integration with satellite hardware
Straight forward integration with satellite hardware
Phase One’s space-hardened enclosure combines a sensor and imaging engine, optional sensor alignment with space telescopes. With an fiber optic 10G Ethernet data interface, you can ensure high speed and reliable data transfer for your space applications.
Technical Imaging Specifications
iXM-SP150
Imaging Specifications
Resolution
14204 x 10652 pixels
Resolution
14204 x 10652 pixels
Pixel size
3.76 µm
Pixel size
3.76 µm
Pixel depth
16bit, 14bit, 12bit
Pixel depth
16bit, 14bit, 12bit
Color variants
Achromatic, Bayer color
Color variants
Achromatic, Bayer color
Quantum Efficiency
82% at 500nm
Quantum Efficiency
82% at 500nm
Full well capacity (e-)
50,000
Full well capacity (e-)
50,000
Read Noise (e-)
3.4
Read Noise (e-)
3.4
Dark current
1.2 e-/s @ 40°C
Dark current
1.2 e-/s @ 40°C
Region of interest
Definable
Region of interest
Definable
Binning option
2x2 in Digital domain (37.7 MP)
Binning option
2x2 in Digital domain (37.7 MP)
Integration time
250µs to 1s
Integration time
250µs to 1s
Telescope mount
Customizable
Telescope mount
Customizable
System Specifications
Compression
Lossless (~1B/ pixel), Smart (~0.7B/ pixel)
Compression
Lossless (~1B/ pixel), Smart (~0.7B/ pixel)
Metadata
In Image
Metadata
In Image
Interface
Optical ethernet 10G
Interface
Optical ethernet 10G
Image buffer size (MB)
1,500
Image buffer size (MB)
1,500
Image transfer rate to host (MB/s)
500
Image transfer rate to host (MB/s)
500
Hardware signals
Trigger input, camera ready output
Hardware signals
Trigger input, camera ready output
Camera control interface
Proprietary over camera SDK, provided
Camera control interface
Proprietary over camera SDK, provided
Camera states
Ready, armed, busy
Camera states
Ready, armed, busy
Power supply
15 V DC
Power supply
15 V DC
Max. power consumption (W)
20
Max. power consumption (W)
20
Mass (g)
865
Mass (g)
865
Dimensions (mm)
100 x 100 x 67
Dimensions (mm)
100 x 100 x 67
Thermal interface
Rear plate
Thermal interface
Rear plate
Environmental Specifications
Operating temperature range
-10°C to +50°C (on rear plate)
Operating temperature range
-10°C to +50°C (on rear plate)
Survival temperature range
-30°C to +65°C (on rear plate)
Survival temperature range
-30°C to +65°C (on rear plate)
Additional benefits and features
Geotagged images, Camera control and Image processing SDK, Ready for remote update, redundant operating system, lightweight and compact, Low power consumption
Geotagged images, Camera control and Image processing SDK, Ready for remote update, redundant operating system, lightweight and compact, Low power consumption
