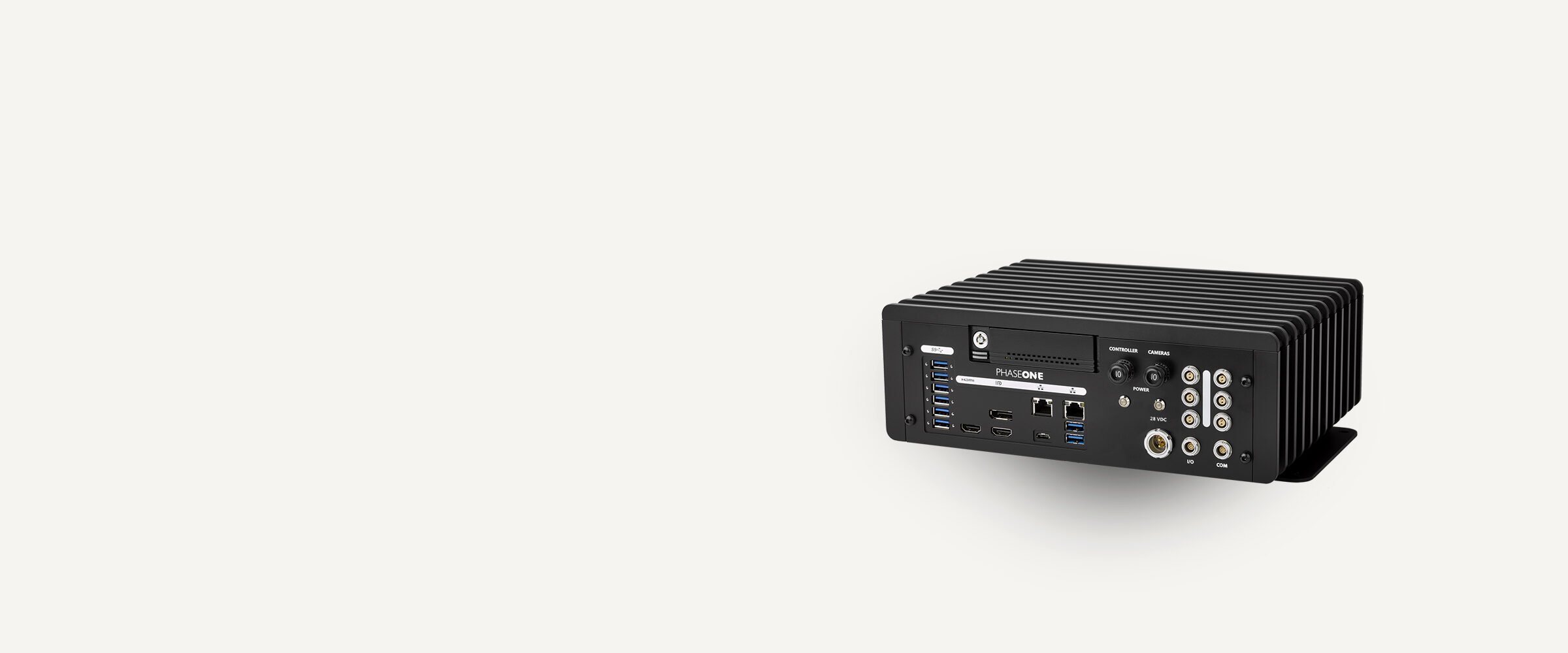

iX Controller MK4
Ultimate in speed and control
About
Capturing aerial data today demands fast computers optimized to work with aerial cameras and capture software. With all of the components working together, you are able to capture, monitor and store images, and adjust camera settings as conditions change.
The iX Controller MK4 is designed to enable rapid data transfer, and has the ability to control up to six Phase One aerial cameras independently. Built as a workhorse, the system boasts a small footprint and easily integrates into any aircraft.
Features

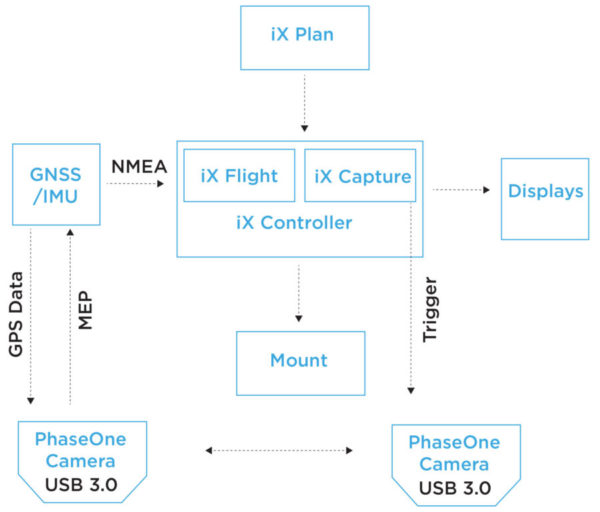

Acting as a central hub to Phase One Aerial Solutions, the iX Controller controls the cameras, gyro-stabilizing mount, GNSS/IMU system, and runs the iX Capture and iX Flight software. iX Controller MK 4 includes an I/O port to enable accurate activation of multiple cameras by iX Flight, which comes pre-installed on the iX Controller.
- 8th generation Intel® Core™ i7 Processor
- Rugged construction
- Fan-less cooling system
- Single power input and multiple power outputs for cameras
- Pre-installed with iX Capture, Capture One and iX Flight*
- Two removable SSDs with optional RAID system for data mirroring
- Supports triple monitors for parallel monitoring and observation of different views of the setup
*(on Aerial Solutions only)
Multiple display configuration
The iX Controller MK4 can connect to multiple displays with HDMI and DP cables, via network or wirelessly. Use a touchscreen display to control the cameras with the tap of a button.
Solid state drives
The iX Controller MK4 includes a robust removable protective SSD tray for convenient and secure transfer and handling.
When the mission is over, the compact and light SSD tray is easily removed from the iX Controller and sent for processing.
-
About
About
Capturing aerial data today demands fast computers optimized to work with aerial cameras and capture software. With all of the components working together, you are able to capture, monitor and store images, and adjust camera settings as conditions change.
The iX Controller MK4 is designed to enable rapid data transfer, and has the ability to control up to six Phase One aerial cameras independently. Built as a workhorse, the system boasts a small footprint and easily integrates into any aircraft.
-
Features
Features
Acting as a central hub to Phase One Aerial Solutions, the iX Controller controls the cameras, gyro-stabilizing mount, GNSS/IMU system, and runs the iX Capture and iX Flight software. iX Controller MK 4 includes an I/O port to enable accurate activation of multiple cameras by iX Flight, which comes pre-installed on the iX Controller.
- 8th generation Intel® Core™ i7 Processor
- Rugged construction
- Fan-less cooling system
- Single power input and multiple power outputs for cameras
- Pre-installed with iX Capture, Capture One and iX Flight*
- Two removable SSDs with optional RAID system for data mirroring
- Supports triple monitors for parallel monitoring and observation of different views of the setup
*(on Aerial Solutions only)
-
Multiple display configuration
Multiple display configuration
The iX Controller MK4 can connect to multiple displays with HDMI and DP cables, via network or wirelessly. Use a touchscreen display to control the cameras with the tap of a button.
-
Solid state drives
Solid state drives
The iX Controller MK4 includes a robust removable protective SSD tray for convenient and secure transfer and handling.
When the mission is over, the compact and light SSD tray is easily removed from the iX Controller and sent for processing.
Technical specifications
Technical specifications
CPU
8th generation Intel® Core™ i7 Processor
(12M Cache, up to 4.00 GHz)
CPU
8th generation Intel® Core™ i7 Processor
(12M Cache, up to 4.00 GHz)
Operating system
Windows 10 64 bit
Operating system
Windows 10 64 bit
Memory
8 GB DDR-4 RAM
Memory
8 GB DDR-4 RAM
Mount
Built-in bracket for attaching to aircraft
Mount
Built-in bracket for attaching to aircraft
Cooling
Fanless/Passive
Cooling
Fanless/Passive
Build
Rugged metal construction with external cooling fins
Build
Rugged metal construction with external cooling fins
Software preinstalled
Software preinstalled
iX Capture
Software preinstalled
iX Capture
Capture One
Capture One
iX Flight (on Aerial Systems only)
iX Flight (on Aerial Systems only)
More technical specifications
Data storage
Dual 512 GB 2.5" SSD drives with ultrafast write capability, and protective mounts (up to 500 MB/sec)
Data storage
Dual 512 GB 2.5" SSD drives with ultrafast write capability, and protective mounts (up to 500 MB/sec)
Expandable
Expandable
USB 3.0
8 ports
USB 3.0
8 ports
USB C
1 port
USB C
1 port
Ethernet
2 RJ45 ports
Ethernet
2 RJ45 ports
Display
DP, 2 HDMI
Display
DP, 2 HDMI
Power terminals
6
Power terminals
6
Power connection
Secured connectors
Power connection
Secured connectors
Fuse
2 x 10 A circuit breakers
Fuse
2 x 10 A circuit breakers
Power input (V DC)
Single camera — 120
Multiple cameras (up to 6) — 220
Power input (V DC)
Single camera — 120
Multiple cameras (up to 6) — 220
Dimensions (mm / in) (W x H x D)
290 x 109 x 225 / 11.4 x 4.3 x 8.9
Dimensions (mm / in) (W x H x D)
290 x 109 x 225 / 11.4 x 4.3 x 8.9
Weight (kg / lb)
5.2 / 11.5
Weight (kg / lb)
5.2 / 11.5
Approvals
FCC (Class A), CE, RoHS
Approvals
FCC (Class A), CE, RoHS
Operating conditions
Temperature (°C / °F)
-10 to 40 / 14 to 104
Temperature (°C / °F)
-10 to 40 / 14 to 104
Humidity (%)
5 to 95 (Non-condensing)
Humidity (%)
5 to 95 (Non-condensing)
1TB image storage capacity
Camera
IIQ-L*
IIQ-S*
Camera
IIQ-L*
IIQ-S*
280 MP
3,100
4,600
280 MP
3,100
4,600
190 MP
4,700
7,000
190 MP
4,700
7,000
150 MP
6,000
9,000
150 MP
6,000
9,000
100 MP
9,000
13,500
100 MP
9,000
13,500
50 MP
19,200
28,500
50 MP
19,200
28,500
*For average file size
*For average file size
