PAS Pana

Wide area camera solution for geospatial mapping

Most productive          widearea camera solution for aerial mapping

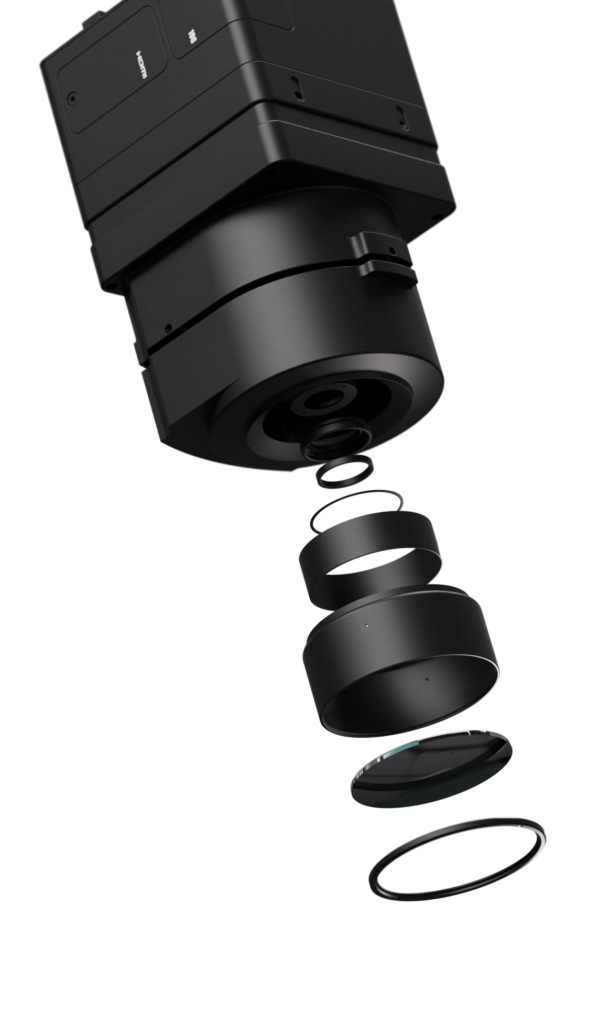

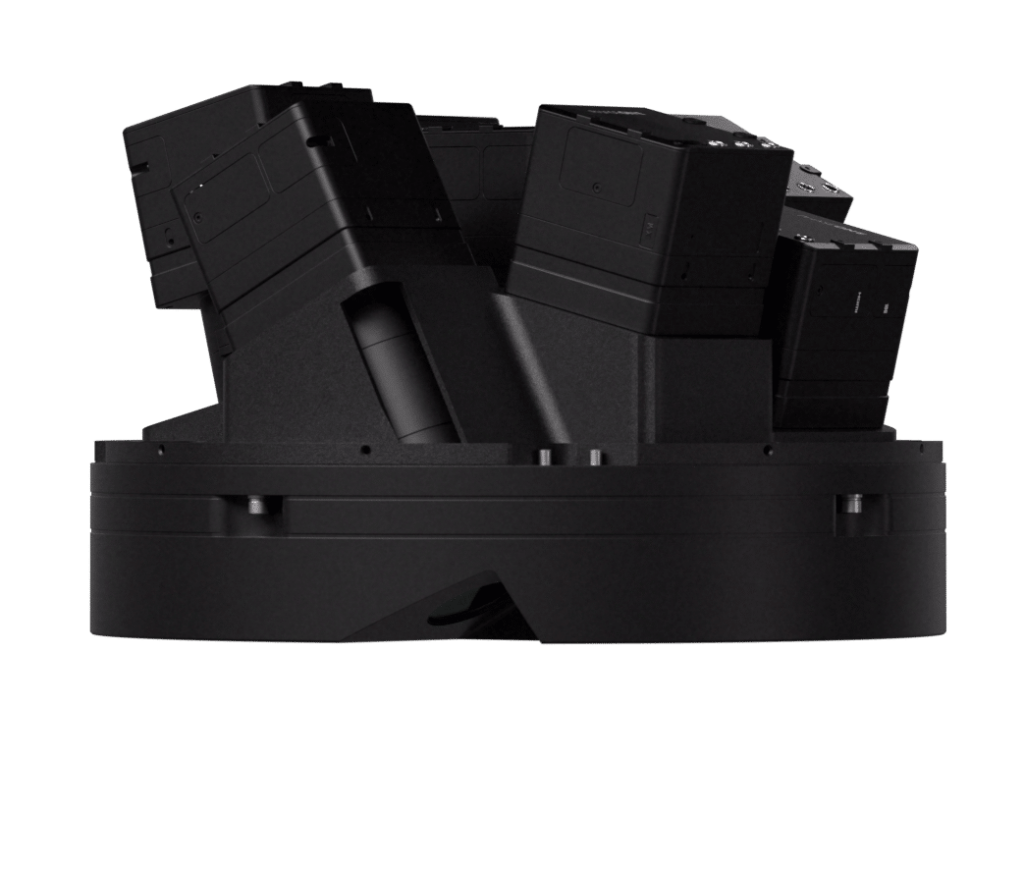

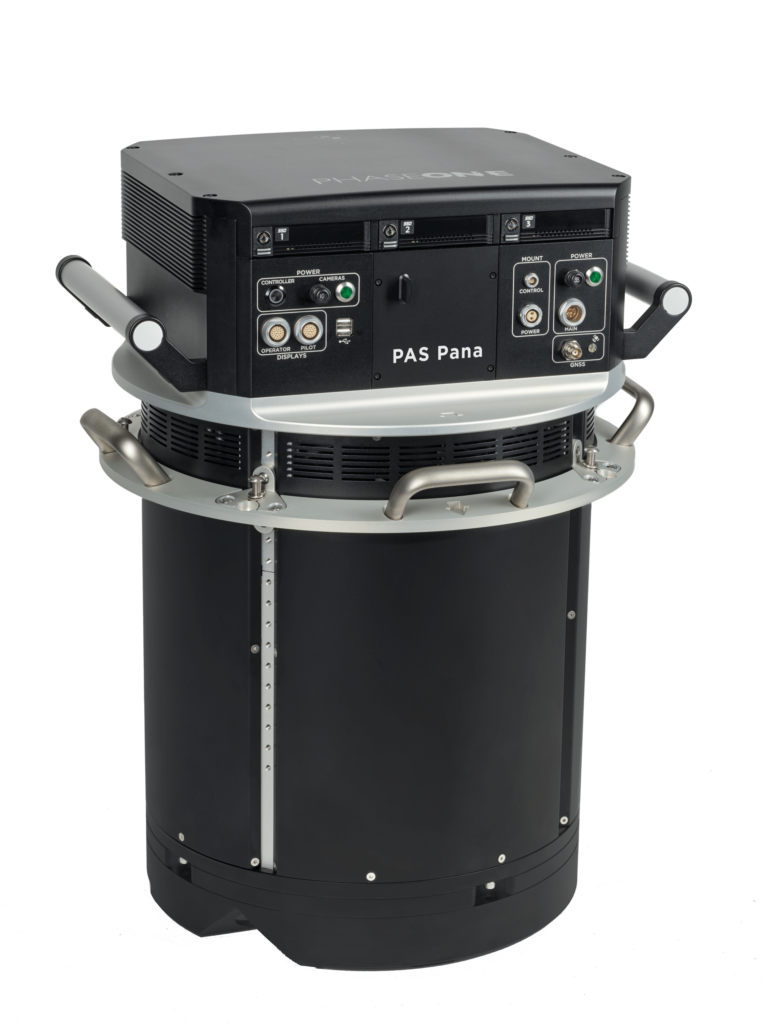

PAS Pana is a 7-camera wide-field camera system consisting of 5 RGB cameras with 150 mm lenses, and 2 NIR cameras with 70 mm lenses. It is a mapping system designed to provide effective performance in country-wide area mapping. Its large swath of 48,800 pixels allows to capture country-wide areas while keeping flying lines, hence flying time at the minimum.

PAS Pana offers various resolution options to suit diverse needs. It delivers exceptional high resolution at 2.5 cm Ground Sample Distance (GSD) for intricate details and up to 30 cm GSD for rapid wide-area coverage. This flexibility allows you to customize it to meet specific mission requirements, whether focusing on fine details or wide coverage.

PAS Pana also grants you full data ownership, freeing you from content program constraints. When paired with the entire iX Suite workflow, it ensures effortless data quality control from the outset. PAS Pana is fully integrated with iX Suite: iX Plan, iX Flight Pro and iX Process. iX Suite offers the most effective workflow and supports mapping projects from planning to execution and processing.

To achieve the schedule and quality requirements of our clients we must collect data rapidly. The high resolution and sensitivity of the PAS Pana system provides the speed and performance to meet our clients ever increasing requirements. Phase One has built a team of industry experts, backed by capable support group, ensuring efficient issue resolution.

Mike Mueller

Senior VP of Operations, Surdex Corporation

Country wide-area mapping solution

Achieve the highest productivity

PAS Pana is a mapping system designed to provide outstanding performance fueled by high-quality data collection. Its large swath of 48,800 pixels enables capturing maximum area in minimal time. In addition, when operated with iX Suite, the level of efficiency reaches a completely new standard. With our proprietary raw image format IIQ, importing has never been smoother, saving you tremendous image conversion time.



Adjust resolution to your needs

By offering a wide range of resolution options, spanning from incredibly high resolution with 2.5 cm GSD to accommodating fast wide area coverage with up to 30 cm GSD, PAS Pana empowers you to achieve optimal results based on your specific geospatial mapping needs, whether it entails fine details or broad coverage.

Zoom in and discover the full resolution

Embrace the freedom to choose

With PAS Pana, you have the freedom to use your aircraft without any restrictions. It seamlessly integrates into any type of aerial photography aircraft, thanks to its plug-and-play design. By simply pairing PAS Pana with our recognized iX Suite software, data quality assurance from the earliest stage has never been so easy. And for delivering your final product, we provide you with the flexibility to choose any preferred post-processing software supporting multi-head systems.



Own your data

PAS Pana breaks free from content program restrictions, offering unparalleled flexibility for any type of larger projects. Its high adaptability caters to your unique requirements, providing the versatility needed to tackle diverse mapping endeavors.

iX Suite

Seamless workflow,

quality assured from the earliest stage

Experience streamlined mission planning with iX Plan—initiate planning by selecting your Phase One system, automatically generating flight lines and controlling project costs. Elevate your mapping project with iX Flight Pro, ensuring precise mission execution and increased efficiency with instant images review and replan while flying. Streamline your workflow with iX Process for immediate image review and adjustments without need of pre-processing.

Technical specifications

Oblique sensor

Sensors

Technical specifications
RGB
NIR

Frame geometry

Central Projection

Central Projection

Frame geometry

RGB
NIR

Central Projection

Central Projection

Sensor type

BSI CMOS Bayer Array

BSI CMOS Achromatic

Sensor type

RGB
NIR

BSI CMOS Bayer Array

BSI CMOS Achromatic

Sensor size

150MP | 14,204 x 10,652

150MP | 14,204 x 10,652

Sensor size

RGB
NIR

150MP | 14,204 x 10,652

150MP | 14,204 x 10,652

Pixel size (µm)

3.76

3.76

Pixel size (µm)

RGB
NIR

3.76

3.76

Sensor arrangement

5x RGB sensors in portrait orientation

2x NIR sensors in landscape orientation

Sensor arrangement

RGB
NIR

5x RGB sensors in portrait orientation

2x NIR sensors in landscape orientation

Nominal focal length (mm)

150

70

Nominal focal length (mm)

RGB
NIR

150

70

Shutter technology

Electromagnetic

Electromagnetic

Shutter technology

RGB
NIR

Electromagnetic

Electromagnetic

Shutter speed max.

1/2500

1/2000

Shutter speed max.

RGB
NIR

1/2500

1/2000

Dynamic range (dB)

83

83

Dynamic range (dB)

RGB
NIR

83

83

Light sensitivity (ISO)

50-6400

50-6400

Light sensitivity (ISO)

RGB
NIR

50-6400

50-6400

A/D conversion (bits)

14

14

A/D conversion (bits)

RGB
NIR

14

14

Aperture

f/5.6

f/5.6

Aperture

RGB
NIR

f/5.6

f/5.6

Field of view for complete system

20.2° along track

31.9° along track

Field of view for complete system

RGB
NIR

20.2° along track

31.9° along track

70.0° across track

70.0° across track

RGB
NIR

70.0° across track

70.0° across track

System

Technical specifications
PAS Pana

Capture (fps)

1.7

Capture (fps)

PAS Pana

1.7

Internal storage

Integrated, 6x4 TB

Internal storage

PAS Pana

Integrated, 6x4 TB

GNSS receiver/IMU

Integrated, Trimble Applanix

GNSS receiver/IMU

PAS Pana

Integrated, Trimble Applanix

AP+, Applanix IMU 57

PAS Pana

AP+, Applanix IMU 57

Data interface

USB 3

Data interface

PAS Pana

USB 3

Dimensions [Ø] (mm)

408 x 716

Dimensions [Ø] (mm)

PAS Pana

408 x 716

Weight (kg)

47

Weight (kg)

PAS Pana

47

Operating temperature (°C)

-10 to 40

Operating temperature (°C)

PAS Pana

-10 to 40

Humidity (%)

15 to 80 (non-condensing)

Humidity (%)

PAS Pana

15 to 80 (non-condensing)

Storage temperature (°C)

-20 to 65

Storage temperature (°C)

PAS Pana

-20 to 65

Sensor control software

iX Flight Pro

Sensor control software

PAS Pana

iX Flight Pro

Peripherals

7” Pilot display, 15.6” or 21” Operator display, Input devices

Peripherals

PAS Pana

7” Pilot display, 15.6” or 21” Operator display, Input devices

Stabilized mount

GSM4000

Stabilized mount

PAS Pana

GSM4000

Average power consumption (W)

400

Average power consumption (W)

PAS Pana

400

Max. power consumption (W)

470

Max. power consumption (W)

PAS Pana

470
