iXM-RS280F
The new standard in large format aerial imaging

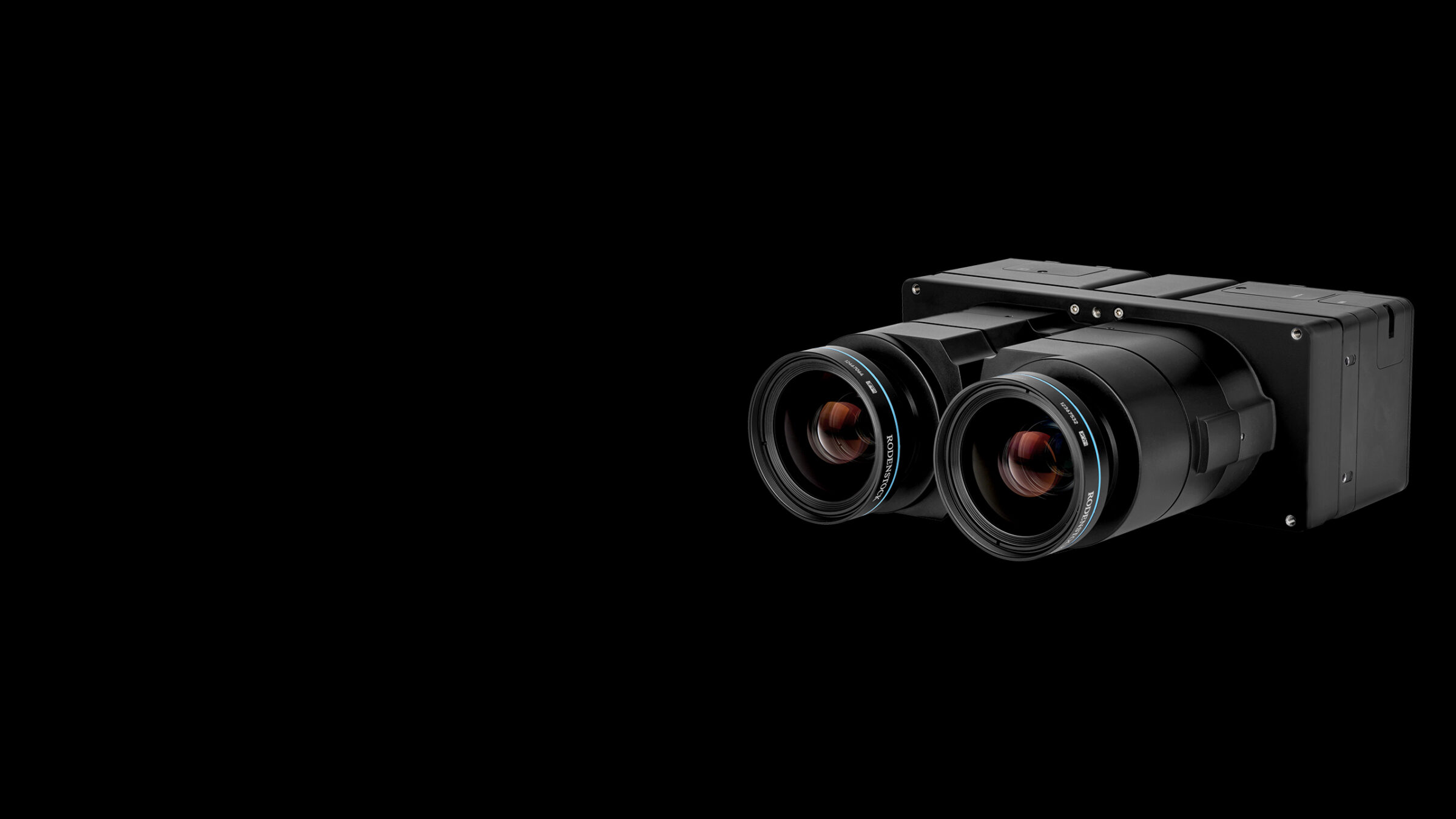

Phase One’s 280MP metric camera has dual 90mm lenses for capturing RGB information and providing superior image quality. The iXM-RS280F camera generates a central projection image from two 150MP nadir images with equal ground resolution. This large-format camera uses backside-illuminated CMOS sensors with a very high dynamic range at 83dB, enabling customers to fly more hours per day and achieve more flights per year.
The iXM-RS280F is a large format option with a resolution with over 20,000 pixels across. It provides the highest image capture rate and dynamic range, increasing overall quality and accuracy of the final photogrammetric products. The new generation of CMOS sensor eliminates motion blur thanks to shorter exposure times, enabled by using high-speed shutters (up to 1/2000 sec) and higher sensitivity pixel design. Combined with RS shutter technology, the camera provides tack sharp images, overcoming cameras with other FMC capabilities.
+20.000 pixels across
Increase performance and productivity with more than 20.000 pixels across.
Integrated leaf shutter
High capture speed for an array of different flight conditions. Capture rates of up to 2 fps and shutter speed up to 1/2000s.
High dynamic range
The iXM-RS280F’s high dynamic range means it captures exceptionally detailed images under varying light conditions.
Compact and lightweight
The iXM-RS280F provides a large format option in a compact small package that is easy to integrate.
-
+20.000 pixels across
+20.000 pixels across
Increase performance and productivity with more than 20.000 pixels across.
-
Integrated leaf shutter
Integrated leaf shutter
High capture speed for an array of different flight conditions. Capture rates of up to 2 fps and shutter speed up to 1/2000s.
-
High dynamic range
High dynamic range
The iXM-RS280F’s high dynamic range means it captures exceptionally detailed images under varying light conditions.
-
Compact and lightweight
Compact and lightweight
The iXM-RS280F provides a large format option in a compact small package that is easy to integrate.
Technical specifications
Specifications
iXM-RS280F
Sensor type
CMOS
Sensor type
CMOS
Resolution
284MP
Resolution
284MP
20,150 x 14,118
20,150 x 14,118
Color options
RGB
Color options
RGB
Dynamic range (dB)
83
Dynamic range (dB)
83
Pixel size (microns)
3.76
Pixel size (microns)
3.76
Light sensitivity (ISO)
50-6400
Light sensitivity (ISO)
50-6400
Max. field of view (°)
45.7
Max. field of view (°)
45.7
Max shutter speed (sec)
1/2000
Max shutter speed (sec)
1/2000
Camera type
Large format
Camera type
Large format
Continuous frame rate (fps)
2
Continuous frame rate (fps)
2
RAW file compression (approx.) (IIQ)
2 x 100 MB
RAW file compression (approx.) (IIQ)
2 x 100 MB
Lens mount
Phase One RS (90 mm only)
Lens mount
Phase One RS (90 mm only)
Interface
iXM-RS280F
Image data
USB 3.0, Ethernet 10G (Fiber/Copper)
Image data
USB 3.0, Ethernet 10G (Fiber/Copper)
API
Phase One SDK
API
Phase One SDK
H/W signals
Inputs: Trigger, Black reference
H/W signals
Inputs: Trigger, Black reference
Outputs: Camera ready, MEP
Outputs: Camera ready, MEP
Internal data storage
CF Express card up to 1 TB
Internal data storage
CF Express card up to 1 TB
HDMI
1920 x 1080
HDMI
1920 x 1080
Synchronization speed in multiple camera configuration
50 μsec
Synchronization speed in multiple camera configuration
50 μsec
Power
iXM-RS280F
Max. power consumption (W)
32
Max. power consumption (W)
32
Power input (VDC)
12 - 30
Power input (VDC)
12 - 30
Mechanical
iXM-RS280F
Weight (g)
4700 (incl. lenses)
Weight (g)
4700 (incl. lenses)
Dimensions (mm)
90 x 227 x 224 (incl. lenses)
Dimensions (mm)
90 x 227 x 224 (incl. lenses)
Interface (for mounting)
6 x M4 threads
Interface (for mounting)
6 x M4 threads
Operating conditions
iXM-RS280F
Weather protection
IP53
Weather protection
IP53
Temperature (˚C)
-10 to 40
Temperature (˚C)
-10 to 40
Humidity (%)
15 to 80 (non-condensing)
Humidity (%)
15 to 80 (non-condensing)
Approvals
FCC Class A, CE, RoHS
Approvals
FCC Class A, CE, RoHS
RS LENSES 90 mm
iXM-RS280F
Lens composition
9 elements in 8 groups
Lens composition
9 elements in 8 groups
Focus range
Infinity
Focus range
Infinity
Shutter speed max.
Up to 1/2000
Shutter speed max.
Up to 1/2000
Exposure control
1/3 f - stop increments
Exposure control
1/3 f - stop increments
Aperture range
f/5.6 - f/22
Aperture range
f/5.6 - f/22
Filter diameter (mm)
72
Filter diameter (mm)
72
Total length (mm) with camera
224
Total length (mm) with camera
224
Weight (g/lb)
1150/2.53
Weight (g/lb)
1150/2.53
Angle of view - long side (°)
45.7
Angle of view - long side (°)
45.7
Angle of view - short side (°)
32.9
Angle of view - short side (°)
32.9
Entrance pupil to image plane (mm)
130.8
Entrance pupil to image plane (mm)
130.8
