XT - Rodenstock Lenses

XT – Rodenstock Lenses

Renowned optics

Exclusive lenses from the renowned Rodenstock HR lens range elevate the XT Camera experience, and deliver reliably outstanding results.

Known for their great resolving power and contrast even at large apertures, the optical design of Rodenstock HR lenses reduces diffraction and color noise, even at the pixel density of the IQ4 150MP, providing further flexibility to the full frame medium format sensor.

Exclusive technology

At the heart of every XT – Rodenstock lens is the X-Shutter – an intelligently integrated and electronically controlled shutter, born out of Phase One’s industrial applications and experience. The X-Shutter is purpose-built for the XT Camera System to allow for finer control in a smaller form factor.

XT 23mm f/5.6

The XT – Rodenstock HR Digaron-S 23mm f/5.6 is simply the best super wide medium format lens on the market, and is fitted with the exclusive X-Shutter.

Angle of view

112°

Aperture range

f/5.6 - f/22

Diaphragm

Automatic

Focusing system

Ultra fine manual focus

Filter

72mm

Dimensions

95 x 107 x 95 mm / 3.74 x 4.21 x 3.74 in

Weight

850 g / 1.87 lbs

XT_Lens_23mm_side

XT 32mm f/4.0 Tilt

A welcome addition for iconic Landscape photographers, the Phase One XT 3° Tilt panel allows for greater focus control of this “go-to” ultra wide-angle lens at larger apertures. The additional depth of field control, coupled with the 12mm shift capabilities of the XT Camera, provides consistent and diffraction free focus from foreground to infinity, all in one shot.

Angle of view

107°

Aperture range

f/4 - f/22

Diaphragm

Automatic

Focusing system

Ultra fine manual focus

Filter

86mm

Dimensions

118 x 107 x 98 mm / 4.65 x 4.21 x 3.85 in

Weight

1160 g / 2.56 lbs

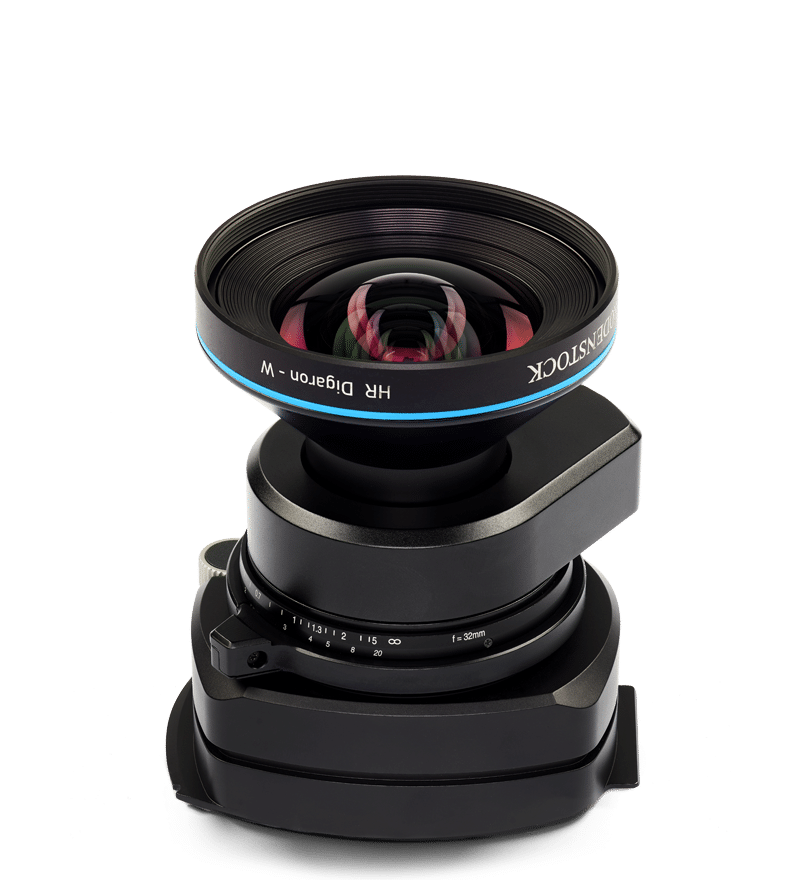

XT_Lens_32mm_Tilt_side

XT 40mm Tilt

The XT-Rodenstock HR Digaron-W 4.0/40mm Tilt is dedicated to impeccable landscape photography, offering outstanding sharpness and unbeatable image quality.

Angle of view

94°

Aperture range

f/4 - f/22

Diaphragm

Automatic

Filter

67mm

Dimensions

105 x 107 x 95 mm / 4.14 x 4.21 x 3.74 in

Weight

995g / 2.2 lbs

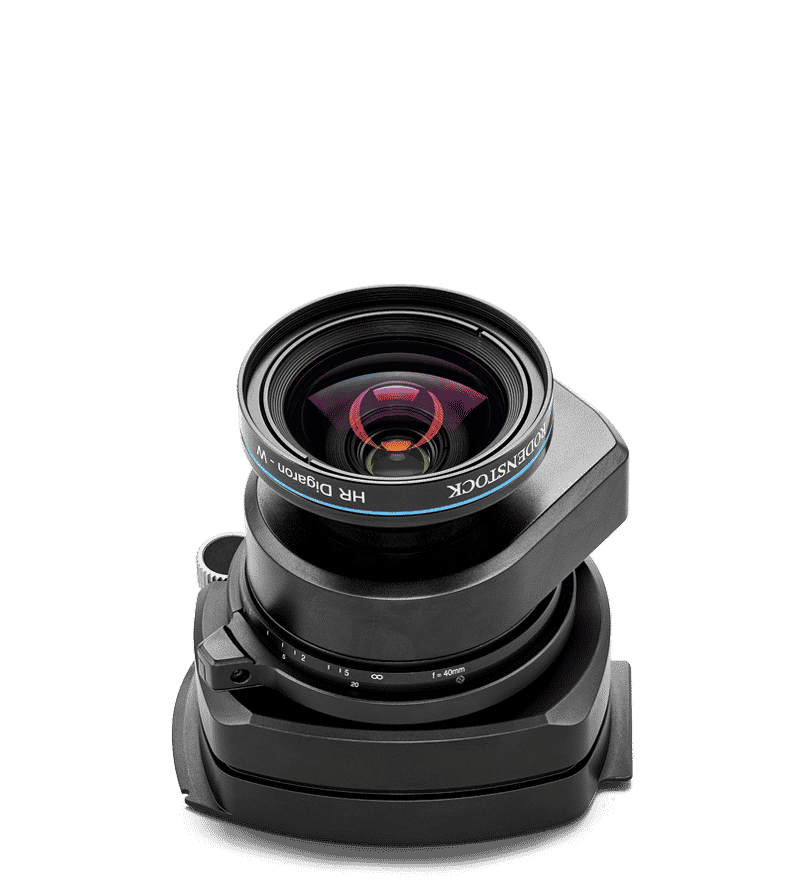

XT_Lens_40mm_side

XT 50mm f/4.0 Tilt

The addition of a Phase One XT 3° Tilt panel to the Rodenstock 50mm f/4 introduces a playful accompaniment to a standard lens. The additional depth of field control, coupled with the 12mm shift capabilities of the XT Camera, provides consistent and diffraction free focus from foreground to infinity, all in one shot.

Angle of view

84°

Aperture range

f/4 - f/22

Diaphragm

Automatic

Focusing system

Ultra fine manual focus

Filter

67mm

Dimensions

116 x 107 x 90 mm / 4.57 x 4.21 x 3.54 in

Weight

1010 g / 2.23 lbs

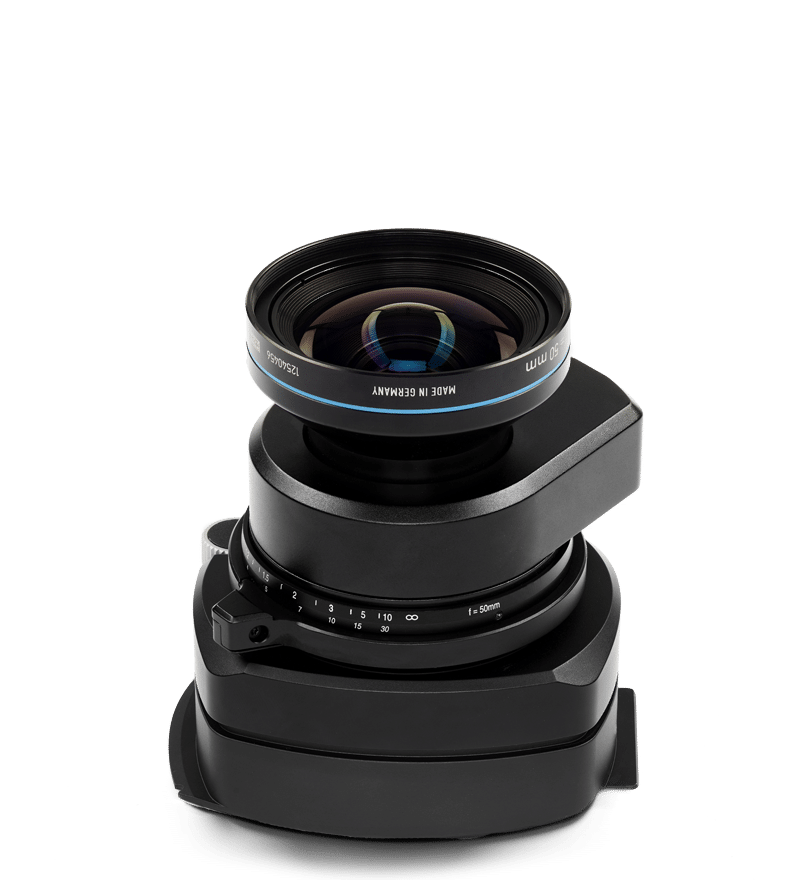

XT_Lens_50mm_tilt_side

XT 70mm f/5.6

The XT – Rodenstock HR Digaron-W 70mm f/5.6 is a normal focal length lens with impeccable image quality and a large image circle.

Angle of view

70°

Aperture range

f/5.6 - f/32

Diaphragm

Automatic

Focusing system

Ultra fine manual focus

Filter

58mm

Dimensions

109 x 107 x 89 mm / 4.29 x 4.21 x 3.5 in

Weight

700 g / 1.54 lbs

XT_Lens_70mm_side

XT 70mm f/5.6 Tilt

The Phase One XT 5° Tilt panel allows for greater depth of field control, utilizing the large image circle of the Rodenstock HR Digaron-W 70mm Lens.

Angle of view

70°

Aperture range

f/5.6 - f/22

Diaphragm

Automatic

Focusing system

Ultra fine manual focus

Filter

58 mm

Dimensions

107x107x80 mm / 4.21 x 4.21 x 3.15 in

Weight

750g / 1.65lb

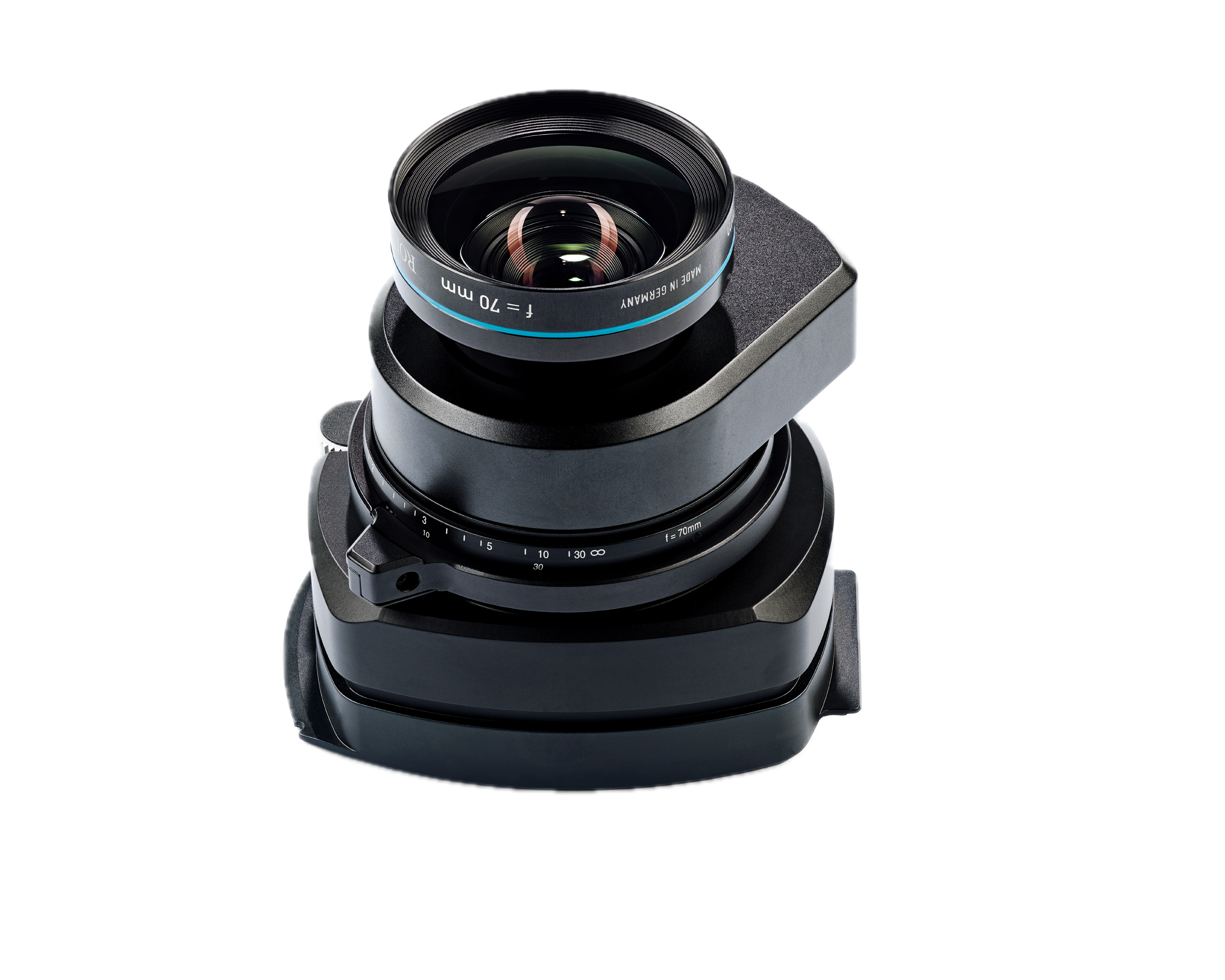

20231212_XT_70mm-Tilt_4k Background Removed

XT 90mm f/5.6

The XT – Rodenstock HR Digaron-SW 90mm f/5.6 boasts the largest image circle of any XT Rodenstock Lens. The large image circle and distortion free focal length is perfect for large panoramic or 4-panel architectural stitching.

Angle of view

67°

Aperture range

f/5.6 - f/22

Diaphragm

Automatic

Focusing system

Ultra fine manual focus

Filter

72mm

Dimensions

160 x 107 x 90 mm / 6.3 x 4.21 x 3.54 in

Weight

1200 g / 2.65 lbs

XT_Lens_90mm_side

XT 90mm f/5.6 Tilt

The Phase One XT 5° Tilt panel introduced to the Rodenstock 90mm f/5.6 provides expressive versatility to an otherwise high-quality telephoto lens. The additional depth of field and perspective control, together with the 24mm shift travel of the XT Camera, allows for complete focus control from foreground to infinity, all in one shot.

Angle of view

67°

Aperture range

f/5.6 - f/22

Diaphragm

Automatic

Focusing system

Ultra fine manual focus

Filter

72 mm

Dimensions

110 x 107 x 90 mm / 4.33 x 4.21 x 3.54 in

Weight

1090g / 2.4lb

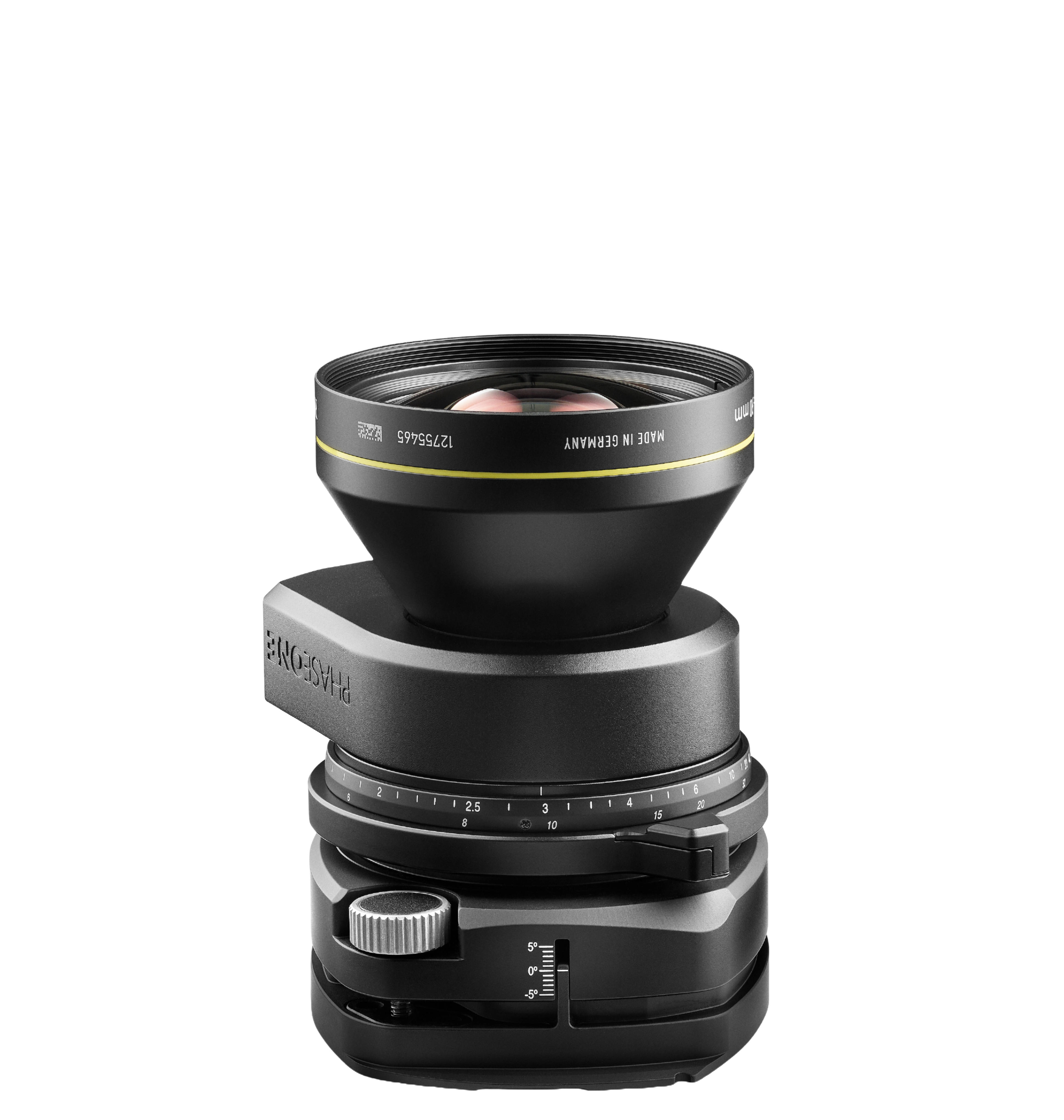

XT_90mm Tilt_Front_PNG 2
