Fusion Shutter for High Definition Aerial Photos

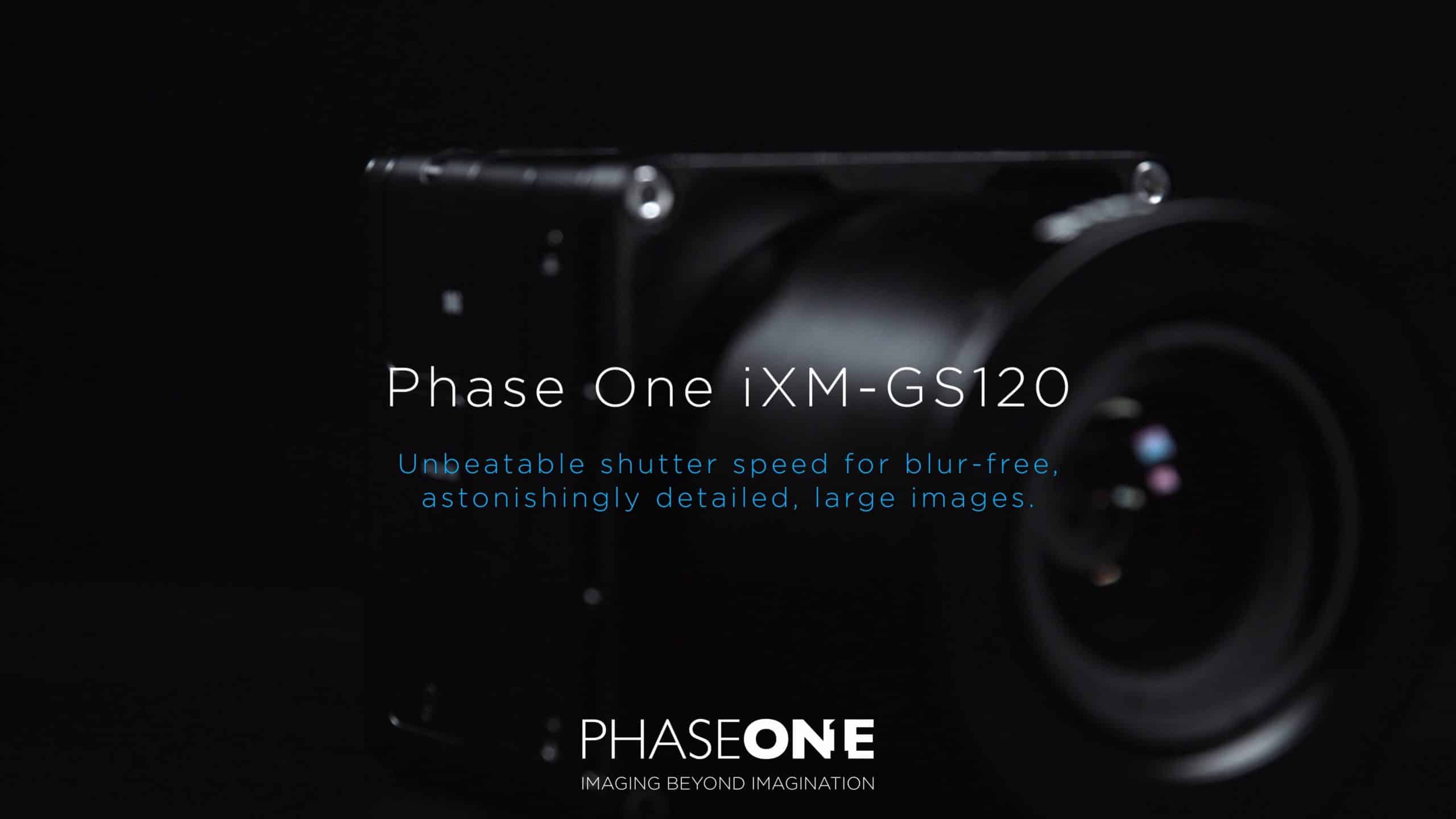

iXM-GS120

Capture the data you need
under any circumstances

text_video

The ideal camera for customers who need to capture images of the finest details of rapidly moving objects. The Phase One iXM-GS120 camera captures the details at the highest speed possible due to its electronic global shutter.

tabs_text

No mechanical shutter required

The iXM-GS120’s electronic global shutter enables you to capture images without any physically moving parts. This makes the iXM-GS120 extremely durable with low-to-no maintenance.

The fastest electronic shutter speed currently on the market

Set exposure times up to 1/16,000 of a second to capture perfect still frames of fast-moving objects with no motion blur.

High dynamic range

Varying light conditions are no problem for the iXM-GS120. Its high dynamic range means it captures exceptionally detailed images at both ends of the light spectrum and everything in between.

Large number of pixels

Its 12,768 x 9,564-pixel count captures images of very large area in incredible quality and detail.

  • No mechanical shutter required

    No mechanical shutter required

    The iXM-GS120’s electronic global shutter enables you to capture images without any physically moving parts. This makes the iXM-GS120 extremely durable with low-to-no maintenance.

  • The fastest electronic shutter speed currently on the market

    The fastest electronic shutter speed currently on the market

    Set exposure times up to 1/16,000 of a second to capture perfect still frames of fast-moving objects with no motion blur.

  • High dynamic range

    High dynamic range

    Varying light conditions are no problem for the iXM-GS120. Its high dynamic range means it captures exceptionally detailed images at both ends of the light spectrum and everything in between.

  • Large number of pixels

    Large number of pixels

    Its 12,768 x 9,564-pixel count captures images of very large area in incredible quality and detail.

product_tabs

Technical specifications

iXM-GS120

Specifications
iXM-GS120

Sensor type

CMOS Global Shutter

Sensor type

iXM-GS120

CMOS Global Shutter

Dynamic range (dB)

80

Dynamic range (dB)

iXM-GS120

80

Pixel size (microns)

3.45

Pixel size (microns)

iXM-GS120

3.45

Sensitivity (ISO)

200

Sensitivity (ISO)

iXM-GS120

200

Global Shutter speed (sec)

1/16000

Global Shutter speed (sec)

iXM-GS120

1/16000

Color options

Color or Monochrome

Color options

iXM-GS120

Color or Monochrome

Resolution

12768 x 9564

Resolution

iXM-GS120

12768 x 9564

Max. field of view (°)

63

Max. field of view (°)

iXM-GS120

63

Continuous frame rate (fps)

Up to 5

Continuous frame rate (fps)

iXM-GS120

Up to 5

RAW file compression (IIQ)

approx. 95MB

RAW file compression (IIQ)

iXM-GS120

approx. 95MB

Interface
iXM-GS120

Image data

Ethernet 10G (Fiber/Copper), USB3

Image data

iXM-GS120

Ethernet 10G (Fiber/Copper), USB3

API

Phase One SDK, Mavlink

API

iXM-GS120

Phase One SDK, Mavlink

H/W signals

Inputs: Trigger, Black reference

H/W signals

iXM-GS120

Inputs: Trigger, Black reference

Outputs: Camera Ready, MEP

iXM-GS120

Outputs: Camera Ready, MEP

Internal storage

CF Express, up to 1TB**

Internal storage

iXM-GS120

CF Express, up to 1TB**

Power
iXM-GS120

Input (VDC)

12-30

Input (VDC)

iXM-GS120

12-30

Max. power consumption (W)

20

Max. power consumption (W)

iXM-GS120

20

Mechanical
iXM-GS120

Dimensions - excluding lens (mm)

90x90x67

Dimensions - excluding lens (mm)

iXM-GS120

90x90x67

Weight - excluding lens (g)

647

Weight - excluding lens (g)

iXM-GS120

647

Interface

8x M4 threads

Interface

iXM-GS120

8x M4 threads

Operating conditions
iXM-GS120

Humidity (%)

15 to 80 (non-condensing)

Humidity (%)

iXM-GS120

15 to 80 (non-condensing)

Weather protection

IP53

Weather protection

iXM-GS120

IP53

Temperature (°C)

-10 to +40

Temperature (°C)

iXM-GS120

-10 to +40

Storage temperature (°C)

-55 to +85

Storage temperature (°C)

iXM-GS120

-55 to +85

FCC

Part 15, class A, subpart B

FCC

iXM-GS120

Part 15, class A, subpart B

Lenses
iXM-GS120

RSM Lenses

35mm, 80mm, 80mmAF, 150mmAF, 300mmAF

RSM Lenses

iXM-GS120

35mm, 80mm, 80mmAF, 150mmAF, 300mmAF

RS Lenses

50mm, 70mm, 90mm, 110mm, 150mm MK II, 180mm

RS Lenses

iXM-GS120

50mm, 70mm, 90mm, 110mm, 150mm MK II, 180mm
