iXM-RS150F

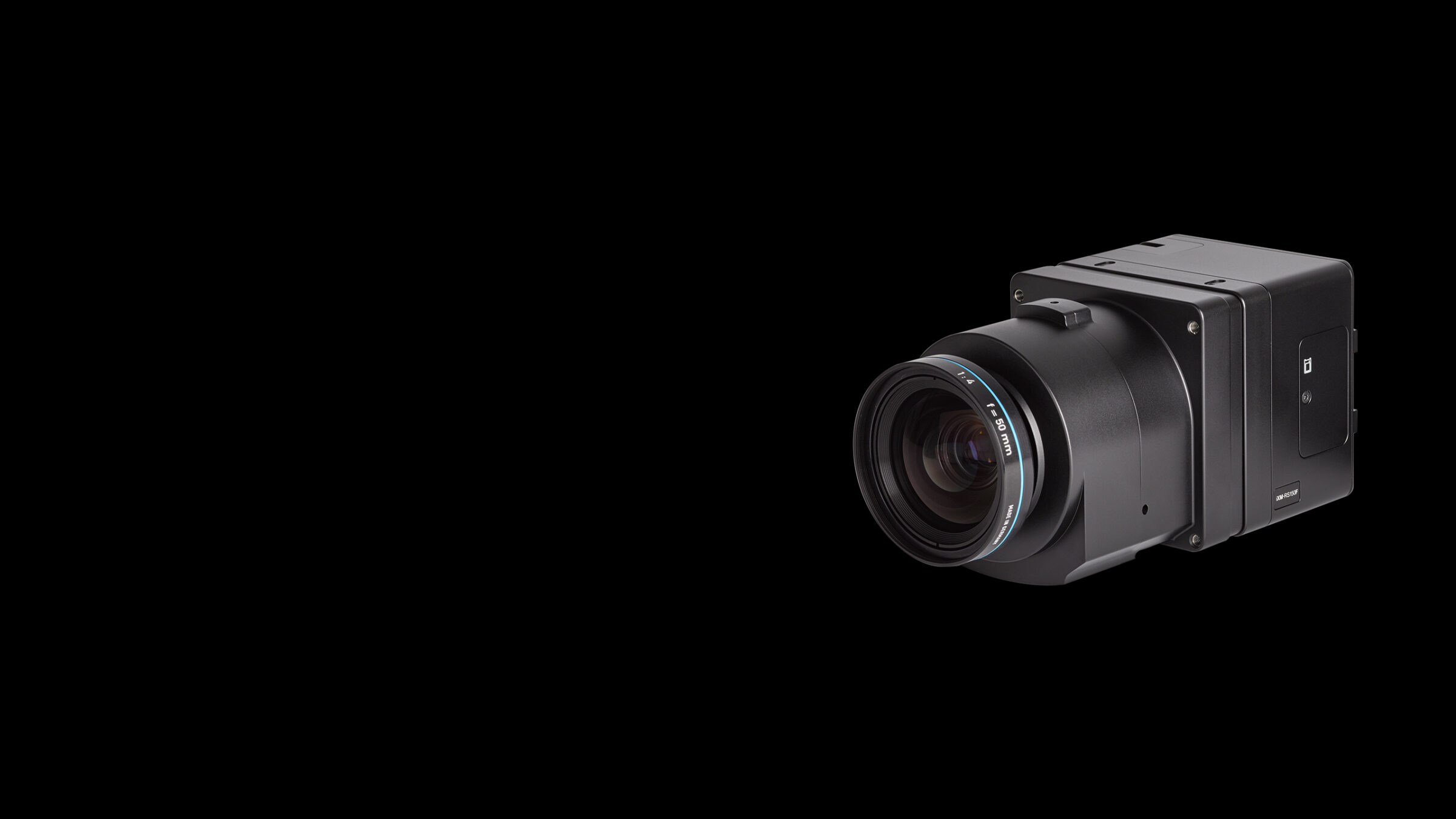

Boost your productivity with a wider aerial coverage
Phase One’s iXM-RS full frame 150MP aerial camera are available in RGB and Achromatic models. An ultra-high resolution, backside illuminated CMOS sensor, fast capture speed, enhanced light sensitivity, and RS leaf shutter, enable increased productivity for a wide range of aerial image acquisition projects. Phase One aerial cameras allow precise image quality across a large range of applications. iXM-RS cameras feature Phase One’s proven RS Lens Series, with eight field-replaceable focal length options ranging from 40mm to 300mm.
Superior accuracy and efficiency
The iXM-RS full frame 150MP aerial cameras are available in RGB and Achromatic. The 150MP aerial photography camera offers an ultra-high resolution (14204 x 10652), backside-illuminated CMOS sensor, fast capture speed, and enhanced light sensitivity that enables increased productivity for a wide range of aerial image acquisition projects. As a result, more flying hours per day, and more flight days per year, can be easily achieved.

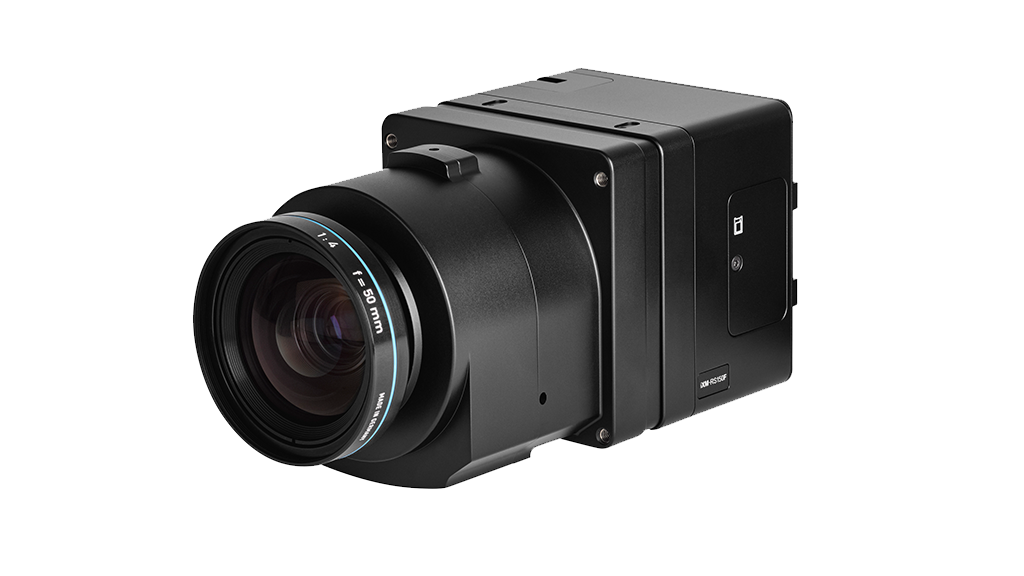

The iXM-RS150F camera is the imaging heart of Phase One’s 150MP Aerial Solution (PAS 150), a fully-integrated solution for mapping and surveying, 3D city modelling, corridor mapping and more.
Highest possible resolution and coverage
With a 14,204 x 10,562 pixel count images of very large areas can be captured in incredible detail.
High dynamic range
The iXM-RS’s high dynamic range means it captures exceptionally detailed images under varying light conditions.
Integrated leaf shutter
High capture speed for an array of different flight conditions. Capture rates of up to 2 fps and shutter speed up to 1/2500s.
Flexible configurations to boost productivity
4-Band configuration available for an even higher productivity and flexibility to cover wide range of projects.
4-Band configuration
iXM-RS cameras are also available with an optical glass over the sensor for near infrared applications (NIR). The camera is suited for a variety of agricultural and forestry applications, including determining harvesting periods, and analyzing crop damage caused by insects, fungus or insufficient water or nutrients in the soil.
Technical specifications
iXM-RS150F
Specifications
iXM-RS150F
Sensor type
CMOS
Sensor type
CMOS
Resolution
150 MP
Resolution
150 MP
14,204 x 10,652
14,204 x 10,652
Dynamic range (dB)
83
Dynamic range (dB)
83
Pixel size (microns)
3.76
Pixel size (microns)
3.76
Light sensitivity (ISO)
50-6400
Light sensitivity (ISO)
50-6400
Max. field of view (°)
67.5
Max. field of view (°)
67.5
Max shutter speed (sec)
1/2500 or 1/2000 depending on lens
Max shutter speed (sec)
1/2500 or 1/2000 depending on lens
Camera type
Medium format
Camera type
Medium format
Continuous frame rate (fps)
2
Continuous frame rate (fps)
2
RAW file compression (approx.) (IIQ)
100 MB
RAW file compression (approx.) (IIQ)
100 MB
Lens mount
Phase One RS
Lens mount
Phase One RS
Interface
iXM-RS150F
Image data
USB 3.0, Ethernet 10G (Fiber/Copper)
Image data
USB 3.0, Ethernet 10G (Fiber/Copper)
API
Phase One SDK
API
Phase One SDK
H/W signals
Inputs: Trigger, Black reference
H/W signals
Inputs: Trigger, Black reference
Outputs: Camera ready, MEP
Outputs: Camera ready, MEP
Internal data storage
CF Express card up to 1TB
Internal data storage
CF Express card up to 1TB
HDMI
1920 x 1080
HDMI
1920 x 1080
Synchronization speed in multiple camera configuration (μsec)
50
Synchronization speed in multiple camera configuration (μsec)
50
Power
iXM-RS150F
Max. power consumption (W)
16
Max. power consumption (W)
16
Power input (VDC)
12 - 30
Power input (VDC)
12 - 30
Mechanical
iXM-RS150F
Weight – excluding lens (g)
1000
Weight – excluding lens (g)
1000
Dimensions – excluding lens (mm)
90 x 90 x 91
Dimensions – excluding lens (mm)
90 x 90 x 91
Interface (for mounting)
4 x M4 threads
Interface (for mounting)
4 x M4 threads
Operating conditions
iXM-RS150F
Weather protection
IP53
Weather protection
IP53
Temperature (˚C)
-10 to 40
Temperature (˚C)
-10 to 40
Humidity (%)
15 to 80 (non-condensing)
Humidity (%)
15 to 80 (non-condensing)
Approvals
FCC Class A, CE, RoHS
Approvals
FCC Class A, CE, RoHS
4-BAND CONFIGURATION (OPTIONAL)
iXM-RS150F
Number of lenses
2
Number of lenses
2
Number of sensors
2 (RGB and NIR)
Number of sensors
2 (RGB and NIR)
RGB/NIR ratio
1:1
RGB/NIR ratio
1:1
NIR Range (nm)
720 - 1000
NIR Range (nm)
720 - 1000
Output formats
NIR, CIR, RGBI, NDVI
Output formats
NIR, CIR, RGBI, NDVI
in Tiff 8- and 16 bit or JPEG
in Tiff 8- and 16 bit or JPEG
Typical image size (MB) for TIFF (8 bit)
600
Typical image size (MB) for TIFF (8 bit)
600
iXM-RS150F Achromatic
Specifications
iXM-RS150F Achromatic
Sensor type
CMOS
Sensor type
CMOS
Resolution
150 MP
Resolution
150 MP
14,204 x 10,652
14,204 x 10,652
Dynamic range (dB)
83
Dynamic range (dB)
83
Pixel size (microns)
3.76
Pixel size (microns)
3.76
Light sensitivity (ISO)
200-25600
Light sensitivity (ISO)
200-25600
Max. field of view (°)
67.5
Max. field of view (°)
67.5
Max shutter speed (sec)
1/2500 or 1/2000 depending on lens
Max shutter speed (sec)
1/2500 or 1/2000 depending on lens
Camera type
Medium format
Camera type
Medium format
Continuous frame rate (fps)
2
Continuous frame rate (fps)
2
RAW file compression (approx.) (IIQ)
100 MB
RAW file compression (approx.) (IIQ)
100 MB
Lens mount
Phase One RS
Lens mount
Phase One RS
Interface
iXM-RS150F Achromatic
Image data
USB 3.0, Ethernet 10G (Fiber/Copper)
Image data
USB 3.0, Ethernet 10G (Fiber/Copper)
API
Phase One SDK
API
Phase One SDK
H/W signals
Inputs: Trigger, Black reference
H/W signals
Inputs: Trigger, Black reference
Outputs: Camera ready, MEP
Outputs: Camera ready, MEP
Internal data storage
CF Express card up to 1TB
Internal data storage
CF Express card up to 1TB
HDMI
1920 x 1080
HDMI
1920 x 1080
Synchronization speed in multiple camera configuration
50 μsec
Synchronization speed in multiple camera configuration
50 μsec
Power
iXM-RS150F Achromatic
Max. power consumption (W)
16
Max. power consumption (W)
16
Power input (VDC)
12 - 30
Power input (VDC)
12 - 30
MECHANICAL
iXM-RS150F Achromatic
Weight – excluding lens (g)
1000
Weight – excluding lens (g)
1000
Dimensions – excluding lens (mm)
90 x 90 x 91
Dimensions – excluding lens (mm)
90 x 90 x 91
Interface (for mounting)
4 x M4 threads
Interface (for mounting)
4 x M4 threads
Operating conditions
iXM-RS150F Achromatic
Weather protection
IP53
Weather protection
IP53
Temperature (˚C)
-10 to 40
Temperature (˚C)
-10 to 40
Humidity (%)
15 to 80 (non-condensing)
Humidity (%)
15 to 80 (non-condensing)
Approvals
FCC Class A, CE, RoHS
Approvals
FCC Class A, CE, RoHS
RS Lenses – Technical Specifications

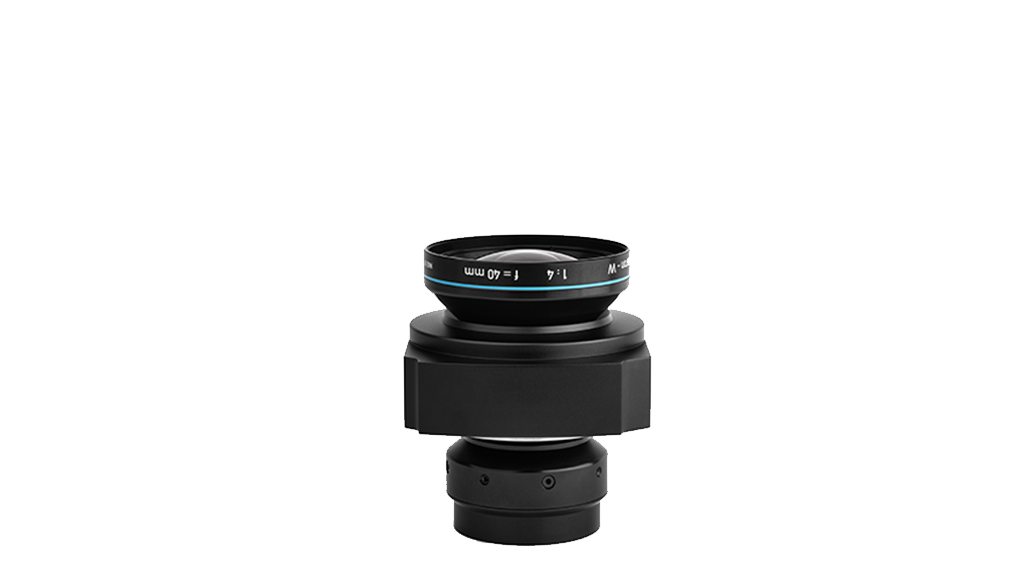

Rodenstock 40mm f/4.0 Lens
Lens composition
10 elements in 7 groups
Focus range
Infinity
Shutter speed max.
Up to 1/2500
Exposure control
1/3 f - stop increments
Aperture range
f/4 - f/22
Filter diameter (mm)
67
Total length (mm) with camera
174.5
Weight (g/lb)
730/1.60
Angle of view - Long side (°)
67.5
Angle of view - Short side (°)
53.2
Entrance pupil to image plane (mm)
94.1

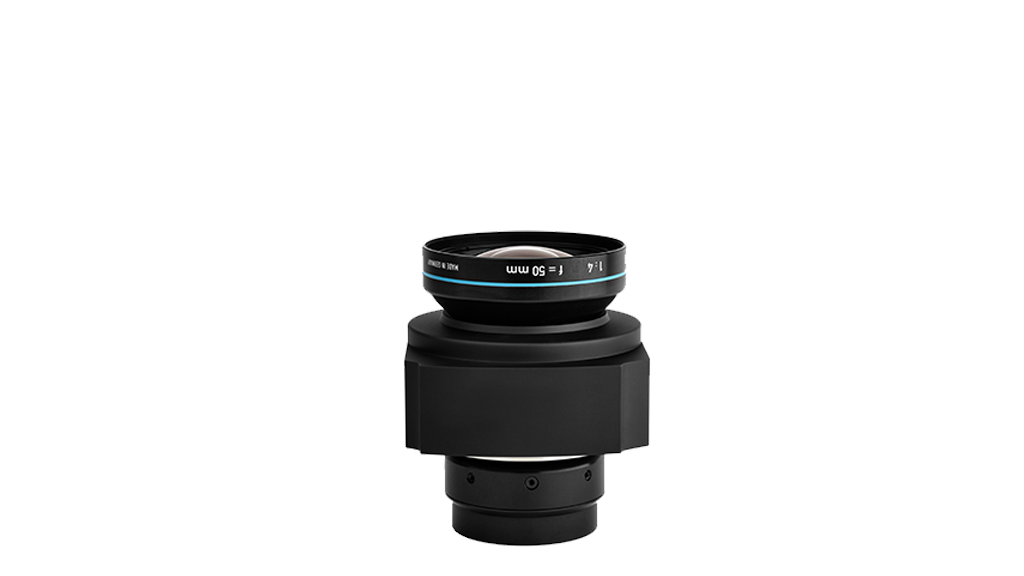

Rodenstock 50mm f/4.0 Lens
Lens composition
10 elements in 7 groups
Focus range
Infinity
Shutter speed max.
Up to 1/2500
Exposure control
1/3 f - stop increments
Aperture range
f/4 - f/22
Filter diameter (mm)
67
Total length (mm) with camera
181
Weight (g/lb)
800/1.76
Angle of view - Long side (°)
56.2
Angle of view - Short side (°)
43.7
Entrance pupil to image plane (mm)
99.3

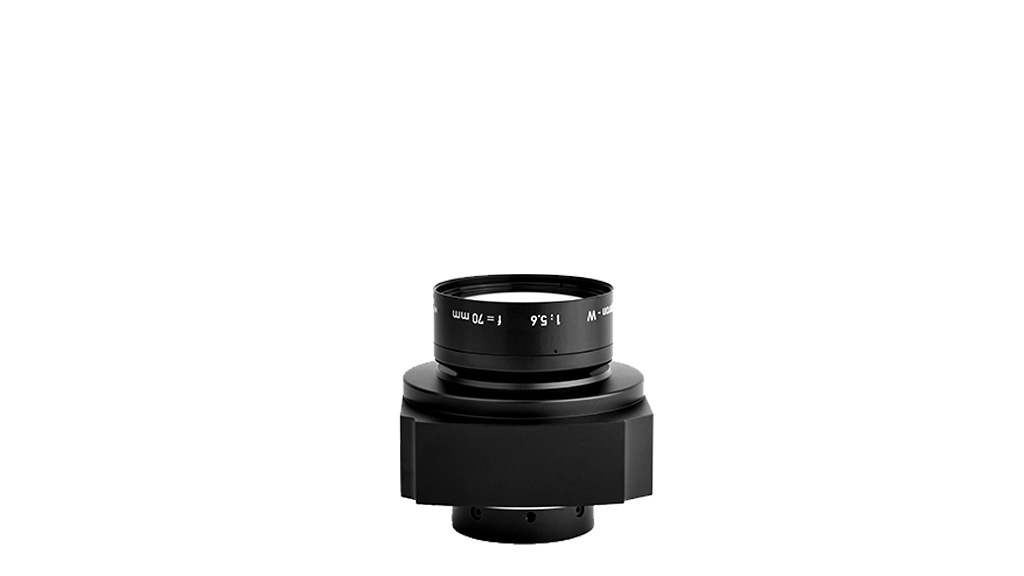

Rodenstock 70mm f/5.6 Lens
Lens composition
9 elements in 7 groups
Focus range
Infinity
Shutter speed max.
Up to 1/2500
Exposure control
1/3 f - stop increments
Aperture range
f/5.6 - f/22
Filter diameter (mm)
58
Total length (mm) with camera
179
Weight (g/lb)
580/1.27
Angle of view - Long side (°)
41.8
Angle of view - Short side (°)
31.9
Entrance pupil to image plane (mm)
91.1

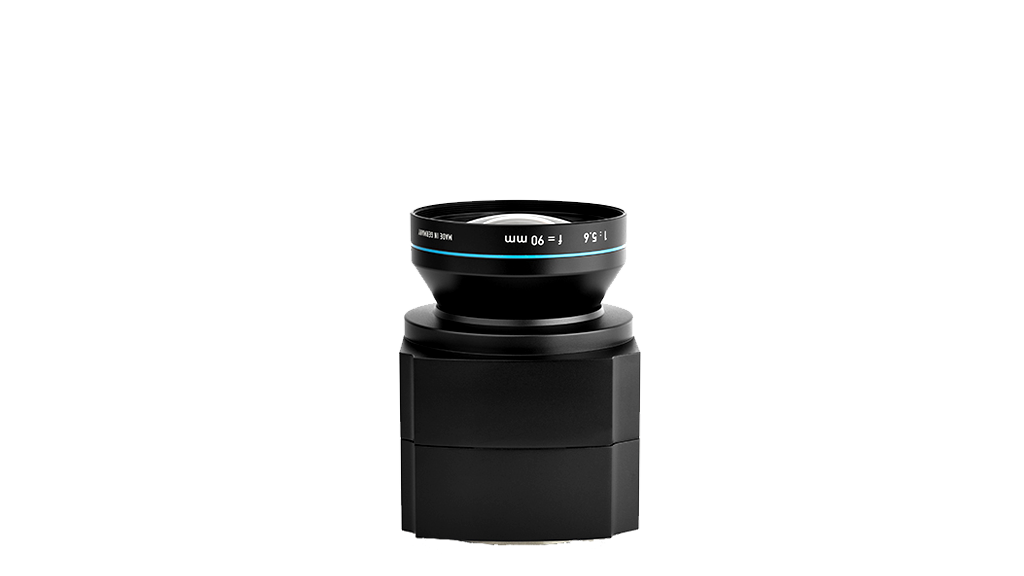

Rodenstock 90mm f/5.6 Lens
Lens composition
9 elements in 8 groups
Focus range
Infinity
Shutter speed max.
Up to 1/2000
Exposure control
1/3 f - stop increments
Aperture range
f/5.6 - f/22
Filter diameter (mm)
72
Total length (mm) with camera
224
Weight (g/lb)
1150/2.53
Angle of view - Long side (°)
33.1
Angle of view - Short side (°)
25.1
Entrance pupil to image plane (mm)
130.8

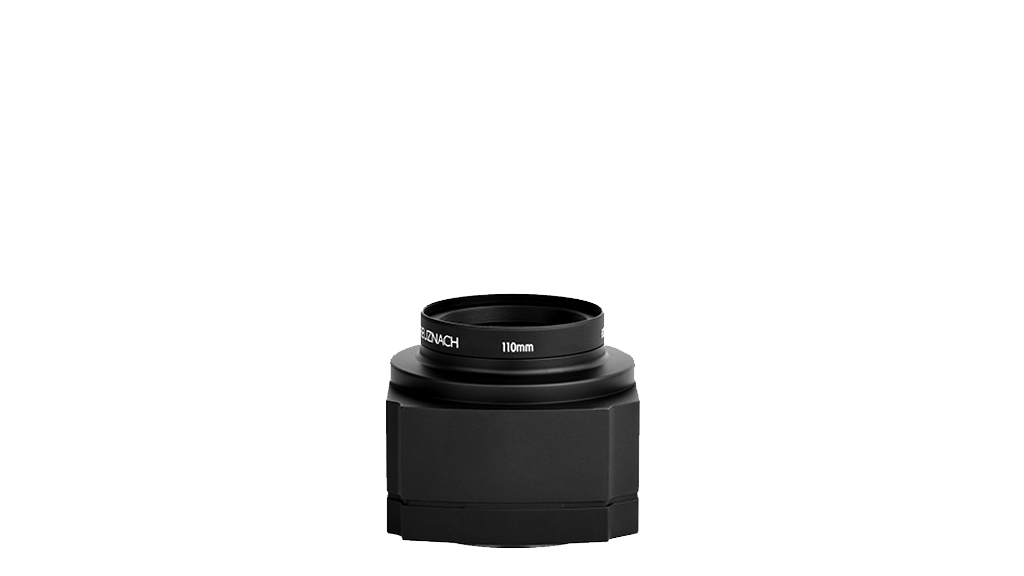

Schneider-Kreuznach 110mm Lens
Lens composition
6 elements in 5 groups
Focus range
Infinity
Shutter speed max.
Up to 1/2500
Exposure control
1/3 f - stop increments
Aperture range
f/4 - f/22
Filter diameter (mm)
58
Total length (mm) with camera
184
Weight (g/lb)
620/1.37
Angle of view - Long side (°)
27.3
Angle of view - Short side (°)
20.6
Entrance pupil to image plane (mm)
76.1
Schneider-Kreuznach 150mm MK II Lens
Lens composition
8 elements in 7 groups
Focus range
Infinity
Shutter speed max.
Up to 1/2500
Exposure control
1/3 f - stop increments
Aperture range
f/5.6 - f/22
Filter diameter (mm)
86
Total length (mm) with camera
257
Weight (g/lb)
1150/2.53
Angle of view - Long side (°)
20.2
Angle of view - Short side (°)
15.2
Entrance pupil to image plane (mm)
65.8

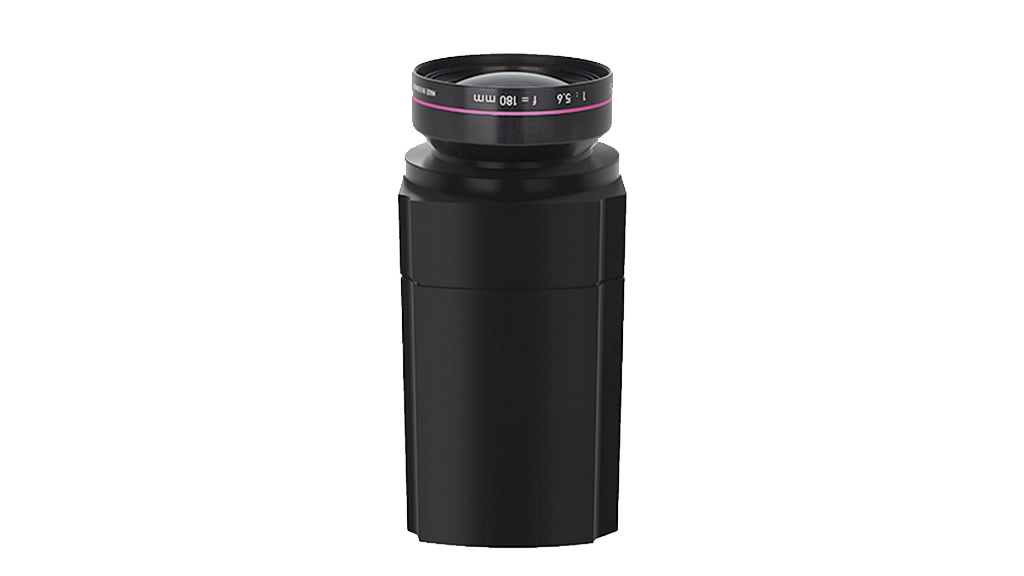

Rodenstock 180mm Lens
Lens composition
7 elements in 3 groups
Focus range
Infinity
Shutter speed max.
Up to 1/2000 sec.
Exposure control
1/3 f - stop increments
Aperture range
f/6.3 - f/22
Filter diameter (mm)
67
Total length (mm) with camera
283
Weight (g/lb)
1400/3.1
Angle of view - Long side (°)
16.9
Angle of view - Short side (°)
12.7
Entrance pupil to image plane (mm)
141.5
RSM 300mm AF f/8 Lens
Lens composition
11 elements in 9 groups
Focus range
10 m to Infinity
Shutter speed max.
Up to 1/2000 sec.
Exposure control
1/3 f - stop increments
Aperture range
f/8 - f/32
Filter diameter (mm)
86
Total length (mm) with camera
328
Weight (g/lb)
1900/4.18
Angle of view - Long side (°)
10.2
Angle of view - Short side (°)
7.6
Entrance pupil to image plane (mm)
85.5
Phase One RS Shutter
The RS Lens shutter uses an innovative direct drive concept with electronic charging that enhances exposure speed as fast as 1/2500s, and with a lifespan of at least 500,000 exposures – a record breaking capture rate and life span longer than ever seen before.
The reliance and the exceptional performances of the RS Shutter enables faster flying, and allows customers to execute and manage the most demanding aerial photography missions with higher operational efficiency, reliability, and in a cost effective manner.
