Monitoring pipeline corridor using PAS 280 large format camera

A notable example of industry-specific mapping is the ongoing project monitoring of gas pipelines in Poland commissioned by OGP Gaz-System S.A  This initiative ensures that every segment of the gas pipeline is captured in ultra-high resolution at two-year intervals. The data is collected with a ground sampling distance (GSD) of 5 cm in RGB and NIR channels, complemented by simultaneous LIDAR scanning. The observation corridor around the pipeline is defined as a minimum of 750 meters in width, with 375 meters extending on either side of the pipeline axis.

Fig. 1. Typical, very complicated shape of project area during corridor mapping.

During the project implementation, AlterGeo Holding tested the Phase One PAS 280 large-format camera mounted on the ALTER-EYE ultralight aircraft. This setup featured a satellite data link to streamline the data acquisition process and enhance pilot support from the office.

Fig. 2. Satellite data link enhanced control all aspects of test performance.

Fig. 3. Sample of final product requested and obtained from corridor mapping.

Fig. 4. Sophisticated flight plan created with iX Plan software.

Fig. 5. The flight angle tests in the directly connected block of observation.

Fig. 6. Final product of observation.

The key findings from the experiment confirm that the PAS 280 camera mounted on the ALTER-EYE ultralight aircraft exceeded expectations.

quotes

The PAS 280 camera paired with the ALTER-EYE aircraft has transformed the way we approach corridor mapping. Its unmatched precision, efficiency, and reliability allow us to deliver results that exceed our clients' expectations.

Antoni Łabaj

AlterGeo Holding


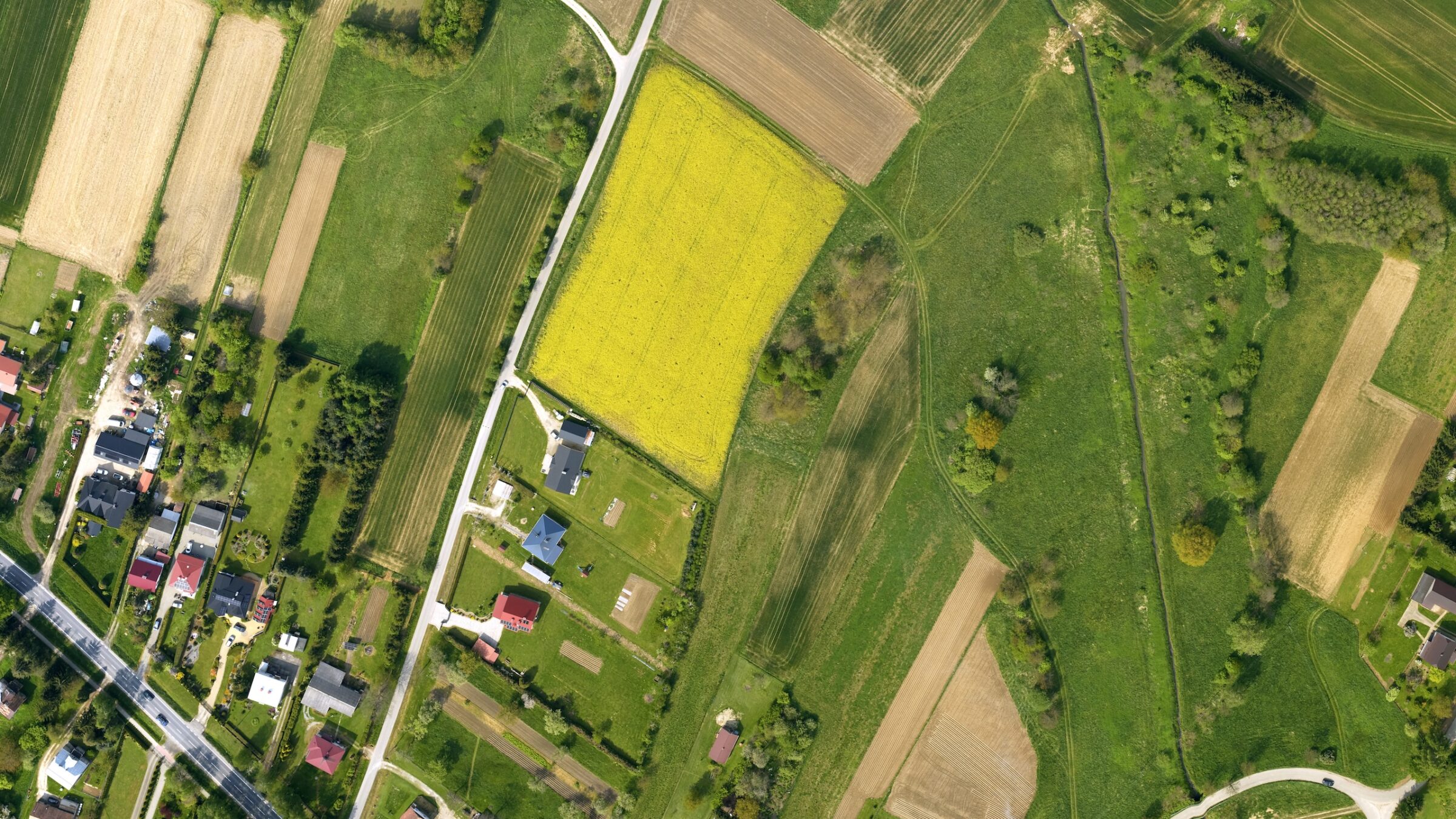

Fig. 7. Image Quality sample obtained with PAS280 in corridor mapping
