UAV mapping camera case study Phase One
Agricultural & Forestry

High class photogrammetry with aerial imagery from a PAS 280 and Trimble Inpho Software

A Phase One Aerial System 280MP (PAS 280), combined with Trimble Inpho software, reached new efficiency levels when processing a classic photogrammetry project for an agricultural customer.

Leveling-up project precision and productivity

Combining a high-quality aerial camera system and complementary software for a complete and seamless workflow is mandatory to level up the precision and productivity of photogrammetric projects.

Improved efficiency was evident in a recent mission of a European customer, exceeding expectations. A Phase One 280MP Aerial System (PAS 280) and Trimble Inpho software achieved project deliverables with the highest productivity.

Quick Facts

Geospatial Technology for 3D City Modeling

5,200 M GSD 15 - 20 CM

17 lines were flown at 17,000 ft (5,200 m) with a GSD of 15 - 20 cm over mountainous terrain

PAS 280 ACCURACY

Image matching at 0.28 pixel and GNSS accuracy of 6 cm

sdk time saving during wind turbine inspections

ORTHOPHOTOS < 1SEC./IMAGE

OrthoMaster high-performance orthorectification module rectifies images in less than 1sec./image.

Faster project area data acquisition

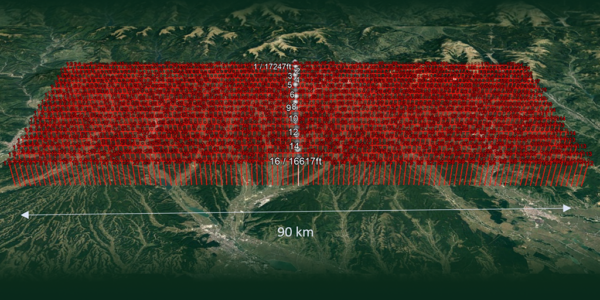

The designated project area was flown in summer 2021 with a Turboprop aircraft at 180 kts equipped with the PAS 280 aerial system. In total, 17 lines were flown at 17,000 ft (5,200 m) altitude with a Ground Sampling Distance (GSD) of 15 – 20 cm over mountainous terrain.

Images were stored and managed by iX Capture software with GNSS/IMU data from the Applanix 310 system. Aplanix's Trimble POSPac software processed the post-flight data.

Aerotriangulation by MATCH-AT

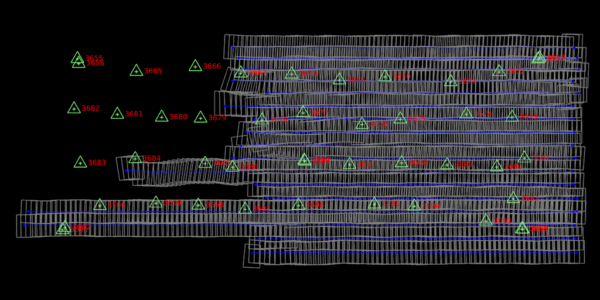

The Inpho MATCH-AT created the aerial triangulation of the project within the selected area of interest with 1,419 images. Some of the provided Ground Control Points (GCP) were used in block adjustment to increase the results' accuracy.

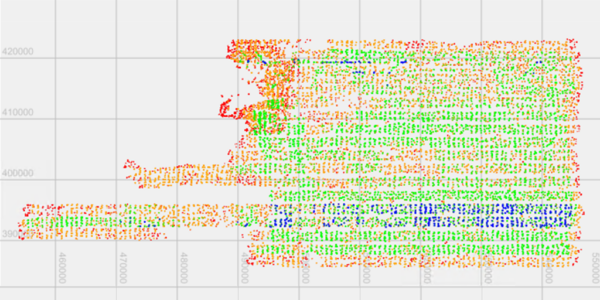

Dense tie point distribution was achieved in all possible areas using the MATCH-AT module's strength in obtaining reliable results, even in challenging areas with less connectivity (e.g. water and cloud coverage).

The quality of the tie point extraction connection resulted in less than 1 sec./image processing time with Inpho, which is well above imagery industry standards.

PAS 280 provides precise point distribution

The PAS 280 proved the excellent reliability of its camera for aerial photogrammetry projects. The block adjustment statistics show that no additional grid distortion correction was needed.

The adjustment statistics show:

  • Image matching at 0.28 pixel and GNSS positioning accuracy of about 6cm. Root Mean Square (RMS) values of automatic and manual measurements of 2 µm or less.
  • RMS values of the 17 GCP's with 6cm in planimetry and 10cm for the height values.

Generating the DSM and DTM using Inpho toolkits

Due to the project’s rural application, the flight was conducted with a 60% overlap and 40% side-lap to rapidly generate a Digital Surface Model (DSM), with sub-pixel accuracy, using the MATCH-T DSM module in Inpho. In city modeling or urban mapping projects, or in areas with high buildings, as well as high-overlapping imagery projects, MATCH-3DX is recommended.

Automatically generated colorized dense point clouds, in sub-pixel accuracy, were filtered to obtain a Digital Terrain Model (DTM) using the DTMToolkit functionality. The standard settings, as default, provided outstanding results, which improved with customized filter settings or interactive modifications.

image: DSM and DTM models created with inpho match-t DSM and DTM toolkit

The combination of high quality Phase One cameras and Trimble Inpho suite increases the level of quality and efficiency in the production lines of any imagery project, from small to large scales.

Dr. Mohsen Miri

Product Manager of Inpho and Photogrammetry Solutions, Trimble

Orthophoto_orthomosaic

Orthophoto generation and mosaicking using OrthoMaster and OrthoVista

The OrthoMaster module in Inpho offers a high-performance orthorectification tool, which was able to rectify the images in Orthophotos in less than 1sec./image.

OrthoVista was used to process the final radiometric adjustment, seamline calculation, and mosaicking. Although this Inpho module is well-known for its strong and automatic ratiometry enhancement capabilities, the refinements of this project were no challenge due to the well-aligned radiometry from the PAS280 images.

Image: Orthophotos after image rectification (left) and final orthomosaic (right). Zoomed view in the orthomosaic after radiometric adjustment with seamlines (bottom)

Increased productivity in less time

The project provides a fitting example of a solution using Phase One cameras and Trimble Inpho software for leveling up the productivity in high-quality aerial imagery projects. The image matching results represent the power of MATCH-AT in tie point extraction with solid connectivity in the whole block.

The high-quality imagery of a PAS280 and the well-balanced radiometry across the entire project increases productivity by reducing the time for any additional refinement to the automatic steps in orthomosaic generation in OrthoVista.

Image: Residuals of the lens showing the high quality of the camera

Recommended Phase One Solution

280MP Aerial Camera System (PAS 280 MK2)

Phase One 280MP Aerial System

PAS 280

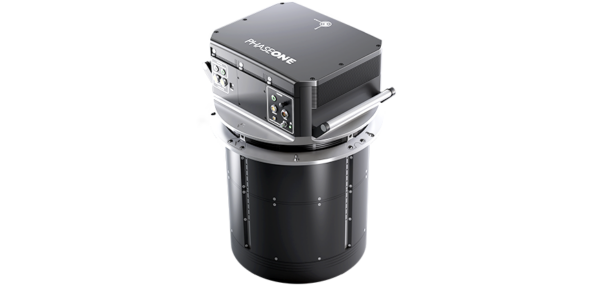

880MP-Oblique-Aerial-System
